Product Details:
Payment & Shipping Terms:
|
| Collector–Emitter Voltage: | 250 Vdc | Collector–Base Voltage: | 250 Vdc |
|---|---|---|---|
| Emitter–Base Voltage: | 6.0 Vdc | Base Current: | 250 MAdc |
| Collector Current – Continuous: | 500 MAdc | Operating And Storage Junction Temperature: | –55 To +150 °C |
| Highlight: | npn smd transistor,multi emitter transistor |
||

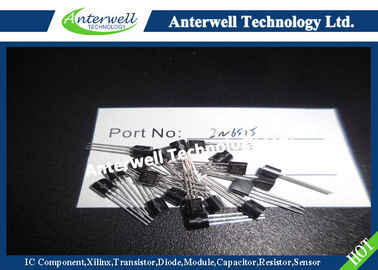

High Voltage Transistors
NPN 2N6515 2N6517
PNP 2N6520
Voltage and current are negative for PNP transistors
MAXIMUM RATINGS
| Rating | Symbol | 2N6515 |
2N6517 2N6520 |
Unit |
|---|---|---|---|---|
| Collector–Emitter Voltage | VCEO | 250 | 350 | Vdc |
| Collector–Base Voltage | VCBO | 250 | 350 | Vdc |
|
Emitter–Base Voltage 2N6515, 2N6516, 2N6517 2N6519, 2N6520 |
VEBO |
6.0 5.0 |
Vdc | |
| Base Current | IB | 250 | mAdc | |
| Collector Current – Continuous | IC | 500 | mAdc | |
|
Total Device Dissipation @ TA = 25°C Derate above 25°C |
PD |
625 5.0 |
mW mW/°C |
|
|
Total Device Dissipation @ TC = 25°C Derate above 25°C |
PD |
1.5 12 |
Watts mW/°C |
|
| Operating and Storage Junction Temperature Range | TJ, Tstg | –55 to +150 | °C | |
THERMAL CHARACTERISTICS
| Characteristic | Symbol | Max | Unit |
|---|---|---|---|
| Thermal Resistance, Junction to Ambient | RθJA | 200 | °C/W |
| Thermal Resistance, Junction to Case | RθJC | 83.3 | °C/W |
PACKAGE DIMENSIONS
