AP60T03GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET general purpose mosfet

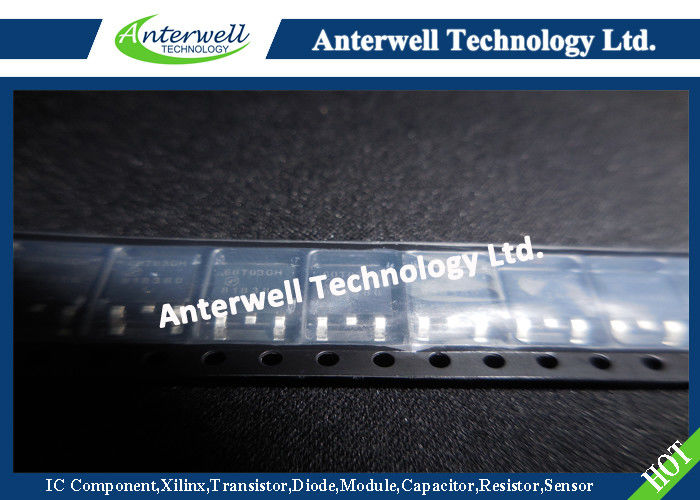

: Large Image : AP60T03GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET general purpose mosfet

Product Details:

Place of Origin:	Original
Brand Name:	A-POWER
Certification:	Original Factory Pack
Model Number:	AP60T03GH

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	1570PCS

Contact Now

Detailed Product Description

VDS:	30V	VGS:	±20V
ID@TC=25℃:	45A	ID@TC=100℃:	32A

AP60T03GH
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

▼ Simple Drive Requirement
▼ Low Gate Charge

▼ Fast Switching

▼ RoHS Compliant

Description

Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness

The TO-252 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP60T03GJ) are available for low-profile applications.

Absolute Maximum Ratings

Symbol	Parameter	Rating	Units
VDS	Drain-Source Voltage	30	V
VGS	Gate-Source Voltage	±20	V
ID@TC=25℃	Continuous Drain Current, VGS @ 10V	45	A
ID@TC=100℃	Continuous Drain Current, VGS @ 10V	32	A
IDM	Pulsed Drain Current1	120	A
PD@TC=25℃	Total Power Dissipation	44	W
	Linear Derating Factor	0.3	W/℃
TSTG	Storage Temperature Range	-55 to 175	℃
TJ	Operating Junction Temperature Range	-55 to 175	℃
