2SD1594 3 Pin Transistor NEC NPN Power Transistor Switching High Speed

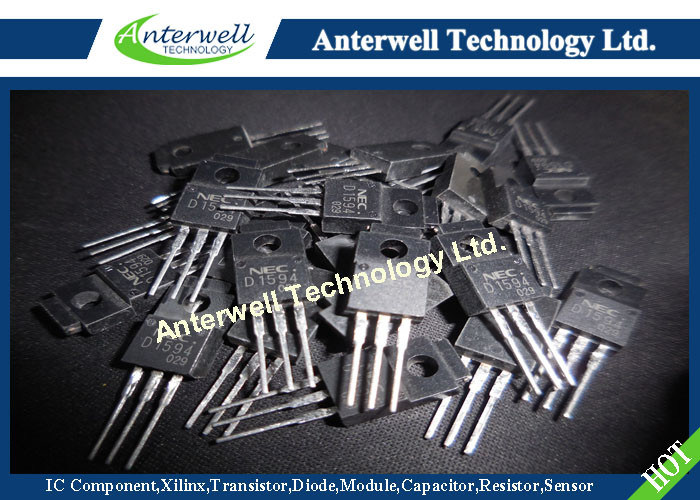

: Large Image : 2SD1594 3 Pin Transistor NEC NPN Power Transistor Switching High Speed

Product Details:

Place of Origin:	Japan
Brand Name:	NEC
Certification:	Original Factory Pack
Model Number:	2SD1594

Payment & Shipping Terms:

Minimum Order Quantity:	50
Packaging Details:	please contact me for details
Delivery Time:	1
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	2000

Contact Now

Detailed Product Description

HFE-2 Classifications Y:	120-240	Shipment:	DHL, FedeX, UPS, EMS Etc
Package:	Original Factory Pack	Main Line:	IC Components, Transistor, Diode, Module,Capacitor Etc
HFE-2 Classifications R:	40-80	HFE-2 Classifications O:	70-140
Highlight:	npn smd transistor , multi emitter transistor

2SD1594 3 Pin Transistor NEC NPN Power Transistor Switching High Speed

Silicon NPN Power Transistor NEC 2SD1594

2SD1594 3 Pin Transistor NEC NPN Power Transistor Switching High Speed

DESCRIPTION

· With TO-220Fa package

· Low collector saturation voltage A

PPLICATIONS

· Low frequency power amplifier

· High speed switching industrial use

PINNING

PIN	DESCRIPTION
1	Base
2	Collector
3	Emitter

Absolute maximum ratings(Ta=25)

SYMBOL	PARAMETER	CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	Open Emitter	150	V
V_CEO	Collector-emitter voltage	Open Base	100	V
V_EBO	Emitter-base voltage	Open Collector	7	V
I_C	Collector current (DC)		7	A
I_CM	Collector current-Peak		15	A
I_B	Base current (DC)		3.5	A
P_C	Collector power dissipation	Ta=25	1.5	W
P_C	Collector power dissipation	TC=25	40	W
T_J	Junction temperature		150
T_stg	Storage temperature		-55~150

Switching times

ton

Turn-on time

IC=5A ;

IB1=0.5A IB2=-0.5A;

VCC=50V RL=10@

0.5

µs

Storage time

0.5

µs

Fall time

1.5

µs
