BTA26-600B integrated circuit components 3 Pin Transistor 3 terminal voltage regulator

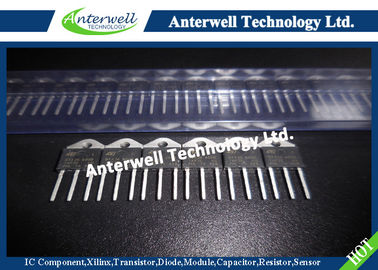

: Large Image : BTA26-600B integrated circuit components 3 Pin Transistor 3 terminal voltage regulator

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BTA26-600B

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9100pcs

Contact Now

Detailed Product Description

Operating Junction Temperature:	- 40 To + 125 °C	Storage Junction Temperature:	- 40 To + 150°C
Average Gate Power Dissipation:	1 W	Peak Gate Current:	4 A
Non Repetitive Surge Peak Off-state Voltage:	VDRM/VRRM + 100 V	Critical Rate Of Rise Of On-state Current:	50 A/µs
High Light:	npn smd transistor , multi emitter transistor

BTA/BTB24, BTA25, BTA26 and T25 Series

SNUBBERLESS^TM & STANDARD

25A TRIACS

MAIN FEATURES:

Symbol	Value	Unit
I_T(RMS)	25	A
V_DRM/V_RRM	600 and 800	V
I_{G (Q1)}	35 to 50	mA

DESCRIPTION

Available either in through-hole of surface and T25 mount packages, the BTA/BTB24-25-26 triac series is suitable for general purpose AC power switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits...or for phase control operation in high power motor speed controllers, soft start circuits...The snubberless versions (BTA/BTB...W and T25 series) are specially recommended for use on inductive loads, thanks to their high commutation performances.

By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734).

Absolute maximum ratings

Symbol	Parameter			Value	Unit
I_T(RMS)	RMS on-state current (full sine wave)	D²PAK TO-220AB	Tc = 100° C	25	A
		RD91 TOP3 Ins.	Tc = 90° C
		TO-220AB Ins.	Tc = 75° C
I_TSM	Non repetitive surge peak on-state current (full cycle, Tj initial = 25° C)	F = 50 Hz	t = 20 ms	250	A
I_TSM		F = 60 Hz	t = 16.7 ms	260	A
I² t	I² t Value for fusing	t_p= 10 ms		450	A² s
dI/dt	Critical rate of rise of on-state current I_G = 2 x I_GT , t_r ≤ 100 ns	F = 120 Hz	Tj = 125° C	50	A/µs
V_DSM/V_RSM	Non repetitive surge peak off-state voltage	t_p = 10 ms	T_j = 25° C	V_DRM/V_RRM + 100	V
I_GM	Peak gate current	t_p = 20 µs	T_j= 125° C	4	A
P_G(AV)	Average gate power dissipation		Tj = 125° C	1	W
Tstg Tj	Storage junction temperature range Operating junction temperature range			- 40 to + 150 - 40 to + 125	° C

BTA26-600B integrated circuit components 3 Pin Transistor 3 terminal voltage regulator
