BTA24-600CWRG 3 Pin Transistor 25 A standard and Snubberless triacs

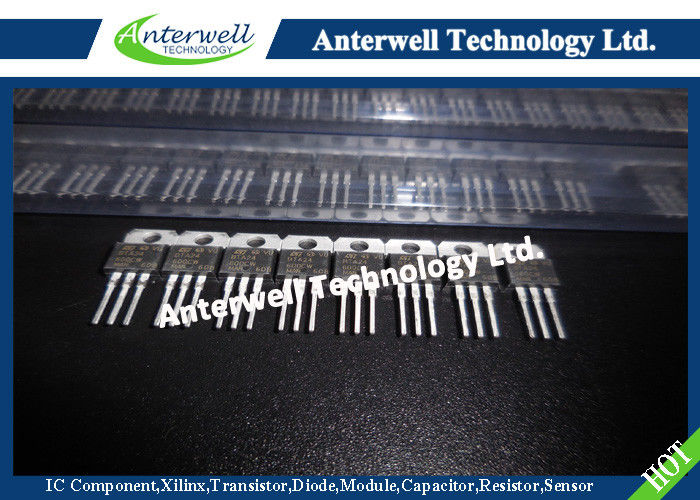

: Large Image : BTA24-600CWRG 3 Pin Transistor 25 A standard and Snubberless triacs

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BTA24-600CWRG

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8700pcs

Contact Now

Detailed Product Description

Critical Rate Of Rise Of On-state Current:	50 A/µs	Non Repetitive Surge Peak Off-state Voltage:	VDRM/VRRM + 100 V
Peak Gate Current:	4 A	Average Gate Power Dissipation:	1 W
Storage Junction Temperature:	- 40 To + 150° C	Operating Junction Temperature:	- 40 To + 125 ° C
High Light:	npn smd transistor , multi emitter transistor

BTA24, BTB24, BTA25 BTA26, BTB26, T25

25 A standard and Snubberless™ triacs

Features

■ High current triac

■ Low thermal resistance with clip bonding

■ High commutation (4 quadrant) or very high commutation (3 quadrant) capability

■ BTA series UL1557 certified (File ref: 81734)

■ Packages are RoHS (2002/95/EC) compliant

Applications

Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in light dimmers, motor speed controllers, and silmilar.

The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 V_RMS).

Absolute maximum ratings

Symbol	Parameter			Value	Unit
I_T(RMS)	RMS on-state current (full sine wave)	TOP3	Tc = 105° C	25	A
		D²PAK / TO-220AB	Tc = 100° C
		RD91 Ins/ TOP3 Ins.	Tc = 100° C
		TO-220AB Ins.	Tc = 75° C
I_TSM	Non repetitive surge peak on-state current (full cycle, Tj initial = 25° C)	F = 50 Hz	t = 20 ms	250	A
I_TSM		F = 60 Hz	t = 16.7 ms	260	A
I² t	I² t Value for fusing	t_p= 10 ms		340	A² s
dI/dt	Critical rate of rise of on-state current I_G = 2 x I_GT , t_r ≤ 100 ns	F = 120 Hz	Tj = 125° C	50	A/µs
V_DSM/V_RSM	Non repetitive surge peak off-state voltage	t_p = 10 ms	T_j = 25° C	V_DRM/V_RRM + 100	V
I_GM	Peak gate current	t_p = 20 µs	T_j= 125° C	4	A
P_G(AV)	Average gate power dissipation		Tj = 125° C	1	W
Tstg Tj	Storage junction temperature range Operating junction temperature range			- 40 to + 150 - 40 to + 125	° C

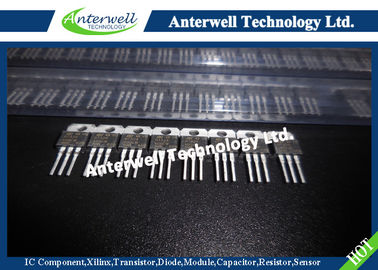

BTA24-600CWRG 3 Pin Transistor 25 A standard and Snubberless triacs
