L7915CV Power Mosfet Transistor Electronics Component Transistor

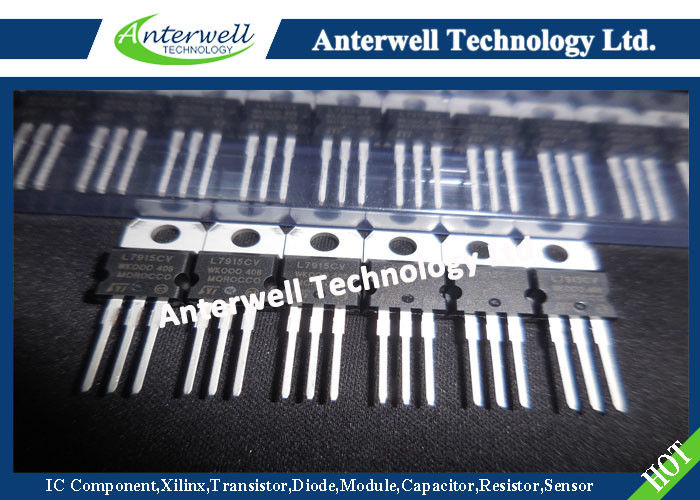

: Large Image : L7915CV Power Mosfet Transistor Electronics Component Transistor

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	L7915CV

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8800pcs

Contact Now

Detailed Product Description

Operating Junction Temperature:	0 To 150 ℃	Storage Temperature:	- 65 To 150 ℃
Output Voltage:	-5 V	Output Voltage Drift:	-0.4 MV/℃
Output Noise Voltage:	100 µV	Supply Voltage Rejection:	60 DB
Dropout Voltage:	1.4 V	Short Circuit Current:	2.1 A
High Light:	npn smd transistor , multi emitter transistor

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

FOD814A300	6500	FAIRCHILD	15+	DIP-4
SP3232EET	6500	SIPEX	16+	SOP-16
APM4546KC	6511	ANPEC	16+	SOP8
BFP405	6520		14+	SOT-343
MBT5401LT1G	6520	ON	14+	SOT23
DF1504S	6522	VISHAY	14+	SMD
74HC257D	6544	PHI	16+	SOP16
BD434	6550	ST	16+	TO126
AD8031ARTZ	6600	ADI	13+	SOT23-5
SMCJ10A-E3/57T	6601	VISHAY	15+	DO-214AB
SN74HCU04DR	6610	TI	16+	SOP14
HEF4511	6611	NXP	16+	SOP-16
PC357N	6644	SHARP	14+	SOP-4
SK54	6660	MCC	14+	DO-214AB
H1102NL	6666	PULSE	14+	SOP16
IRF9640PBF	6666	VISHAY	16+	TO-220
LM317AMDT	6668	NS	16+	TO252
LGA676-P1Q2-24	6699	OSRAM	13+	LED
MC33272AP	6699	ON	15+	DIP8
BTS723GW	6700		16+	SOP14
LM358PWR	6710	TI	16+	TSSOP8
IRF7303	6711	IR	14+	SOP-8
HD74LS76	6718	RENESAS	14+	DIP
ECG001B-G	6740	WJ	14+	SOT-89
PDTC143ZT	6755	NXP	16+	SOT-23
BIT3713	6788	BITEK	16+	SOP-16
74HC175	6800	ST	13+	SOP
MMBD5819	6800	ON	15+	SOD123
P6KE33A	6800	VISHAY	16+	DO-15
T82C55AM-2	6800	TOSTIBA	16+	SSOP

L7900 SERIES

NEGATIVE VOLTAGE REGULATORS

■ OUTPUT CURRENT UP TO 1.5 A

■ OUTPUT VOLTAGESOF -5; -5.2; -6; -8; -9; -12; -15; -18; -20; -22; -24V

■ THERMAL OVERLOAD PROTECTION

■ SHORT CIRCUIT PROTECTION

■ OUTPUT TRANSITION SOA PROTECTION

DESCRIPTION

The L7900 series of three-terminal negative regulators is available in TO-220, ISOWATT220 TO-3 and D² PAK packages and several fixed output voltages, making it useful in a wide range of applications.These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L7800 positive standard series, they are particularly suited for split power supplies. In addition, the -5.2V is also available for ECL system. If adequate heat sinking is provided, they can deliver over 1.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
V_i	DC Input Voltage (for V_O = 5 to 18V) (for V_O = 20, 24V)	-35 -40	V
Io	Output Current	Internally limited
Ptot	Power Dissipation	Internally limited
Top	Operating Junction Temperature Range	0 to 150	℃
Tstg	Storage Temperature Range	- 65 to 150	℃
