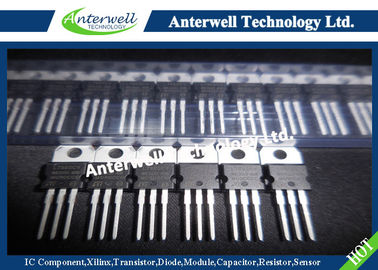

L7905CV Power Mosfet Transistor Negative voltage regulators

: Large Image : L7905CV Power Mosfet Transistor Negative voltage regulators

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	L7905CV

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Storage Temperature:	-65 To 150 °C	Operating Junction Temperature:	0 To 150 °C
Output Voltage:	-5 V	Output Voltage Drift:	-0.4 MV/°C
Output Noise Voltage:	100 µV	Supply Voltage Rejection:	60 DB
Dropout Voltage:	1.4 V	Short Circuit Current:	2.1 A
High Light:	npn smd transistor , silicon power transistors

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

6N139	6000	FAIRCHILD	14+	DIP
AO3401	6000	AOS	14+	SOT-23
BAS16	6000	ON	14+	SOT-23
BAT54XV2	6000	ON	16+	SOD523
BUP313D	6000		16+	TO-3P
DLW21HN900SQ2L	6000	MURATA	13+	SMD
FDS4953	6000	FAIRCHILD	15+	SOP8
IRF7389TRPBF	6000	IR	16+	SOP-8
MAX6003	6000	MAXIM	16+	SOT-23
MB2S	6000	VISHAY	14+	SOP-4
MGA-82563-TR1	6000	AVAGO	14+	SOT-363
MMBD1504A	6000	FAIRCHILD	14+	SOT-23
MMBT3646	6000	FAIRCHILD	16+	SOT-23
MP2374DS	6000	MPS	16+	SOP-8
NC7SZ08M5X	6000	FAIRCHILD	13+	SOT-153
PBR941	6000	NXP	15+	SOT23
PT2313	6000	PTC	16+	SOP
SMDJ20A	6000	LITTELFUS	16+	DO-214AB
TSOP4838	6000	VISHAY	14+	DIP-3
LM2576HVS-ADJ	6001	NS	14+	TO-263-5
TCLT1003	6001	VISHAY	14+	SOP-4
LQH44PN4R7MJ0L	6005	MURATA	16+	SMD
SM8S33A	6008	VISHAY	16+	DO-218AB
3224W-1-102	6021	BOURNS	13+	SMD
SMCJ16CA	6050	VISHAY	15+	DO-214
BTB16-600BW	6100	ST	16+	TO-220
LM2651MTC-3.3	6100	NS	16+	SOP16
MAX3491CSD	6100	MAXIM	14+	SOP14
P6KE400A	6100	VISHAY	14+	DO-15
MC34063ADR	6110	ON	14+	SOP8

L79xxC Negative voltage regulators

Features

■ Output current up to 1.5 A

■ Output voltages of -5; -8; -12; -15; -20 V

■ Thermal overload protection

■ Short circuit protection

■ Output transition SOA protection

Description

The L79XXC series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L78XX positive standard series, they are particularly suited for split power supplies. If adequate heat sinking is provided, they can deliver over 1.5 A output current.

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

Absolute maximum ratings

Symbol	Parameter		Value	Unit
V_I	DC input voltage	for V_O= 5 to 18V	-35	V
V_I	DC input voltage	for V_O= 20, 24V	-40	V
I_O	Output current		Internally limited
P_D	Power dissipation		Internally limited
T_STG	Storage temperature range		-65 to 150	°C
T_OP	Operating junction temperature range		0 to 150	°C

Note: Absolute maximum ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.

L7905CV Power Mosfet Transistor Negative voltage regulators

Schematic diagram

L7905CV Power Mosfet Transistor Negative voltage regulators

Pin connections (top view)

L7905CV Power Mosfet Transistor Negative voltage regulators
