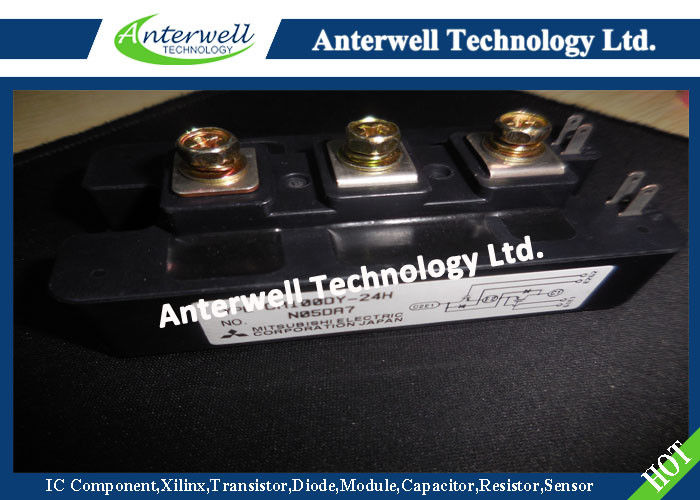

MITSUBISHI IGBT MODULES CM100DY-24H

HIGH POWER SWITCHING USE INSULATED TYPE



Description:

Mitsubishi IGBT Modules are designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.



Features: CM100DY-24H Mosfet Power Module Lgbt Power Module thyristor switching

  • Low Drive Power
  • Low VCE(sat)
  • Discrete Super-Fast Recovery Free-Wheel Diode
  • High Frequency Operation
  • Isolated Baseplate for Easy Heat Sinking

Applications:

  • AC Motor Control
  • Motion/Servo Control
  • UPS
  • Welding Power Supplies

Absolute Maximum Ratings, Tj = 25 °C unless otherwise specified

Ratings Symbol CM100DY-24H Units
Junction Temperature Tj –40 to 150 °C
Storage Temperature Tstg –40 to 125 °C
Collector-Emitter Voltage (G-E SHORT) VCES 1200 Volts
Gate-Emitter Voltage (C-E SHORT) VGES ±20 Volts
Collector Current (TC = 25°C) IC 100 Amperes
Peak Collector Current ICM 200* Amperes
Emitter Current** (TC = 25°C) IE 100 Amperes
Peak Emitter Current** IEM 200* Amperes
Maximum Collector Dissipation (TC = 25°C, Tj ≤ 150°C) Pc 780 Watts
Mounting Torque, M5 Main Terminal - 1.47 ~ 1.96 N · m
Mounting Torque, M6 Mounting - 1.96 ~ 2.94 N · m
Weight - 270 Grams
Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Vrms

*Pulse width and repetition rate should be such that the device junction temperature (Tj) does not exceed Tj(max) rating.

**Represents characteristics of the anti-parallel, emitter-to-collector free-wheel diode (FWDi).



Outline Drawing and Circuit Diagram

CM100DY-24H Mosfet Power Module Lgbt Power Module thyristor switching
