BTA16-600B Power Mosfet Transistor power mosfet ic STANDARD TRIACS

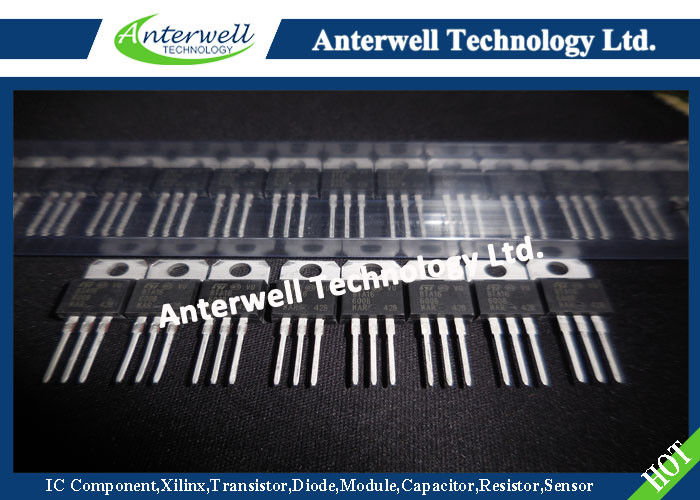

: Large Image : BTA16-600B Power Mosfet Transistor power mosfet ic STANDARD TRIACS

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BTA16-600B

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7600pcs

Contact Now

Detailed Product Description

RMS On-state Current:	16 A	I2t Value:	128 A2s
Storage Temperature:	- 40 To + 150°C	Operating Junction Temperature:	- 40 To + 125 °C
Junction To Ambient:	60 °C/W	Maximum Lead Temperature For Soldering During 10 S:	260 °C
High Light:	npn smd transistor , multi emitter transistor

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

MAX6301CSA	3120	MAXIM	14+	SOP8
MUR1520G	3120	ON	14+	TO-220
TPS71501DCKR	3120	TI	14+	SC70-5
ULN2803LW	3120	ALLEGRO	16+	SOP18
LTC1728ES5	3122	LINEAR	16+	SOT153
NC7WZ16P6X	3125	FAIRCHILD	13+	SOT-363
MBi5026GF	3130	MBI	15+	SOP24
DS15BA101SDE	3144	NS	16+	LLP16
L6569AD013	3145	ST	16+	SOP-8
PIC12F683-I/P	3145	MICROCHIP	14+	DIP8
IR2110S	3168	IR	14+	SOP16
HD74LS48P	3174	HITACHI	14+	DIP
2N5458	3200	FAIRCHILD	16+	TO-92
2SC2655	3200	TOSHIBA	16+	TO-92L
2SK405	3200	NEC	13+	SOT523
ATMEGA64-16AU	3200	ATMEL	15+	QFP
B3F-1000	3200	OMRON	16+	DIP
CD4046BE	3200	TI	16+	DIP
HCPL4503	3200	FSC	14+	DIP
HEF4538BP	3200	NXP	14+	DIP
IPD090N03	3200		14+	TO-252
IRL3803S	3200	IR	16+	TO-263
KA3525	3200	FSC	16+	DIP-16
L9822EPD	3200	ST	13+	SOP-20
LM4040CIM3-2.5	3200	NS	15+	SOT-23
MAX3386ECUP-T	3200	MAXIM	16+	TSSOP
MC14504BCP	3200	MOT	16+	DIP
PIC18F8680-I/PT	3200	MICROCHIP	14+	QFP
SG3525	3200	ST	14+	DIP
SN74AHCT594PWR	3200	TI	14+	TSSOP

BTB16 B

STANDARD TRIACS

FEATURES

. HIGH SURGE CURRENT CAPABILITY

. COMMUTATION : (dV/dt)c > 10V/µs

. BTA Family :

INSULATING VOLTAGE = 2500V_(RMS)

(UL RECOGNIZED : E81734)

DESCRIPTION

The BTA/BTB16 B triac family are high performance glass passivated PNPN devices.

These parts are suitables for general purpose applications where high surge current capability is required. Application such as phase control and static switching on inductive or resistive load.

ABSOLUTE RATINGS (limiting values)

Symbol	Parameter			Value	Unit
I_T(RMS)	RMS on-state current (360° conduction angle)	BTA	Tc = 80 °C	16	A
		BTB	Tc = 90 °C
I_TSM	Non repetitive surge peak on-state current ( Tj initial = 25°C )		tp = 8.3 ms	170	A
			tp = 10 ms	160
I²t	I²t value		tp = 10 ms	128	A²s
dI/dt	Critical rate of rise of on-state current Gate supply : I_G = 500mA di_G/dt = 1A/µs		Repetitive F = 50 Hz	10	A/µs
			Non Repetitive	50
Tstg Tj	Storage and operating junction temperature range			- 40 to + 150 - 40 to + 125	°C
Tl	Maximum lead temperature for soldering during 10 s at 4.5 mm from case			260	°C
