BTA08-600C Power Mosfet Transistor Triacs Sensitive Gate 8A TRIACS

China BTA08-600C Power Mosfet Transistor Triacs Sensitive Gate 8A TRIACS supplier

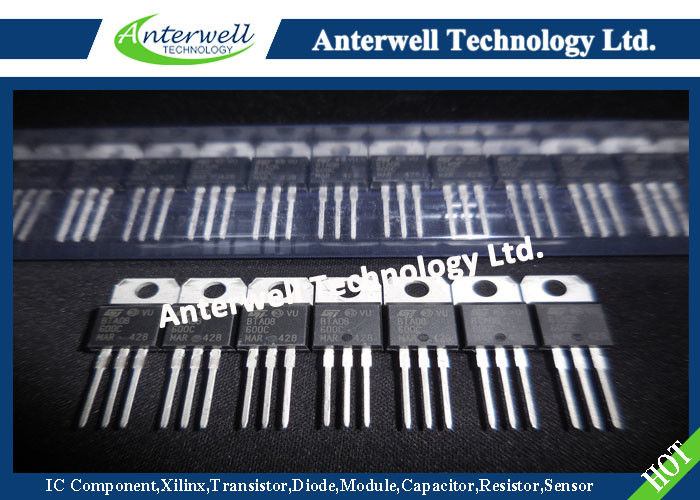

Large Image :  BTA08-600C Power Mosfet Transistor Triacs Sensitive Gate 8A TRIACS

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: BTA08-600C

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 7900pcs
Contact Now
Detailed Product Description
RMS On-state Current (full Sine Wave): 8 A I² T Value For Fusing: 36 A² S
Peak Gate Current: 4 A Average Gate Power Dissipation: 1 W
Storage Junction Temperature Range: - 40 To + 150°C Operating Junction Temperature Range: - 40 To + 125 °C
High Light:

npn smd transistor

,

silicon power transistors



Stock Offer (Hot Sell)

Part no. Quantity Brand D/C Package
PIC16F876A-I/SP 3000 MICROCHI 15+ DIP
PS8802-1 3000 NEC 16+ SOP8
RL207 3000 MIC 16+ DO-15
RUEF500 3000 TYCO/RAYC 14+ DIP-2
SHT15 3000 SENSIRION 14+ SMD
SK84 3000 MCC 14+ SMC
SMCJ10A 3000 VISHAY 16+ DO-214A
SMP1322-017 3000 SKYWORKS 16+ SOT-143
SN65HVD251DR 3000 TI 13+ SOP8
SR05 TCT 3000 SEMTECH 15+ SOT143
STM809LWX6F 3000 ST 16+ SOT-23
STP80NS04Z 3000 ST 16+ TO-220
TC54VN3002ECB713 3000 MICROCHIP 14+ SOT23-3
TDA2003 3000 ST 14+ TO-220
TMBYV10-40FILM 3000 ST 14+ DO-213
TNY274PN 3000 POWER 16+ DIP-7
TPS2051BDBVR 3000 TI 16+ SOT23-5
TPS61222DCKR 3000 TI 13+ SOT363
UCLAMP0511P 3000 SEMTECH 15+ SLP1006P2
ZTX651 3000 ZETEX 16+ TO-92
ZXTN2038FTA 3000 ZETEX 16+ SOT-23
HCNW2201 3002 AVAGO 14+ SOP-8
VN46AFD 3008 VISHAY 14+ TO-220
LD7552BPS 3031 LEADTREND 14+ SOP8
DM9000EP 3100 DAVICOM 16+ TQFP100
EPM3064ATC44-10N 3100 ALTERA 16+ QFP-44
MAX488CPA 3110 MAXIM 13+ DIP8
2SA1213-Y 3120 TOSHIBA 15+ SOT89
74OL6000 3120 FSC 16+ DIP-6
EPM240T100C5N 3120 ALTERA 16+ TQFP





BTA/BTB08 and T8 Series

SNUBBERLESS™, LOGIC LEVEL & STANDARD 8A TRIACS



MAIN FEATURES:

Symbol Value Unit
IT(RMS) 8 A
VDRM/VRRM 600 and 800 V
IGT (Q1) 5 to 50 mA



DESCRIPTION

Available either in through-hole or surface-mount packages, the BTA/BTB08 and T8 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers,...



The snubberless versions (BTA/BTB...W and T8 series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734)



ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit
IT(RMS) RMS on-state current (full sine wave)

DPAK / D² PAK

IPAK / TO-220AB

Tc = 110°C 8 A
TO-220AB Ins. Tc = 100°C
ITSM Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C) F = 50 Hz t = 20 ms 80 A
F = 60 Hz t = 16.7 ms 84
I ² t I² t Value for fusing tp = 10 ms 36 A² s
dI/dt Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns F = 120 Hz Tj = 125°C 50 A/µs
IGM Peak gate current tp = 20 µs Tj = 125°C 4 A
PG(AV) Average gate power dissipation Tj = 125°C 1 W

Tstg

Tj

Storage junction temperature range

Operating junction temperature range



- 40 to + 150

- 40 to + 125

°C
