2SC2625 Power Mosfet Transistor Silicon NPN Power Transistors HIGH VOLTAGE HIGH SPEED SWITCHING

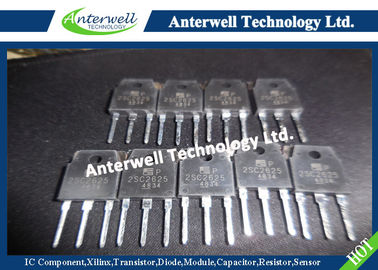

: Large Image : 2SC2625 Power Mosfet Transistor Silicon NPN Power Transistors HIGH VOLTAGE HIGH SPEED SWITCHING

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SC2625

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8600pcs

Contact Now

Detailed Product Description

Collector Base Voltage:	450 V	Emitter Base Voltage:	7 V
Collector Current:	10 A	Power Dissipation:	80 W
Junction Temperature:	+150 ℃	Storage Temperature:	-40 ~ +150 ℃
Highlight:	npn smd transistor , multi emitter transistor

2SC2625 NPN EPITAXIAL SILICON TRANSISTOR

HIGH VOLTAGE HIGH SPEED SWITCHING

 FEATURES

* High voltage, high speed switching

* High reliability

2SC2625 Power Mosfet Transistor Silicon NPN Power Transistors HIGH VOLTAGE HIGH SPEED SWITCHING

*Pb-free plating product number: 2SC2625L

ORDERING INFORMATION

Order Number		Package	Packing
Normal	Lead free plating
2SC2625-T3P-T	2SC2625L-T3P-T	TO-3P	Tube

ABSOLUTE MAXIMUM RATINGS (T_C=25℃)

PARAMETER	SYMBOL	RATINGS	UNIT
Collector Base Voltage	V_CBO	450	V
Collector Emitter Voltage	V_CEO	400	V
Collector Emitter Voltage	V_CEO(SUS)	400	V
Emitter Base Voltage	V_EBO	7	V
Collector Current	I_C	10	A
Base Current	I_B	3	A
Power Dissipation	P_D	80	W
Junction Temperature	T_J	+150	℃
Storage Temperature	T_STG	-40 ~ +150	℃

SWITCHING TIME TEST CIRCUIT

2SC2625 Power Mosfet Transistor Silicon NPN Power Transistors HIGH VOLTAGE HIGH SPEED SWITCHING

TYPICAL CHARACTERISTICS

2SC2625 Power Mosfet Transistor Silicon NPN Power Transistors HIGH VOLTAGE HIGH SPEED SWITCHING
