CD40106BM Hex Schmitt Trigger CMOS HEX SCHMITT TRIGGERS timer ic chip power ic chip

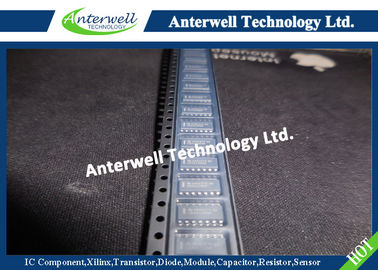

: Large Image : CD40106BM Hex Schmitt Trigger CMOS HEX SCHMITT TRIGGERS timer ic chip power ic chip

Product Details:

Place of Origin:	Original
Brand Name:	NSC
Certification:	Original Factory Pack
Model Number:	CD40106BM

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Wide Supply Voltage Range:	3V To 15V	High Noise Immunity:	0.7 VDD (typ.)
Low Power:	Fan Out Of 2 Driving 74L	Hysteresis:	0.4 VDD (typ.)
Equivalent To MM54C14/MM74C14:	/
High Light:	multi emitter transistor , silicon power transistors

CD40106BM/CD40106BC Hex Schmitt Trigger

CD40106BM Hex Schmitt Trigger CMOS HEX SCHMITT TRIGGERS timer ic chip power ic chip Features

♦ Wide supply voltage range 3V to 15V

♦ High noise immunity 0.7 VDD (typ.)

♦ Low power

Fan out of 2 driving 74L TTL compatibility or 1 driving 74LS

♦ Hysteresis 0.4 VDD (typ.) 0.2 VDD guaranteed

♦ Equivalent to MM54C14/MM74C14

♦ Equivalent to MC14584B

General Description

The CD40106B Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N and P-channel enhancement transistors. The positive and negative-going threshold voltages, VTa and VTb, show low variation with respect to temperature (typ 0.0005V/§C at VDD e 10V), and hysteresis, VTa b VTb t 0.2 VDD is guaranteed.

All inputs are protected from damage due to static discharge by diode clamps to VDD and VSS

CD40106BM Hex Schmitt Trigger CMOS HEX SCHMITT TRIGGERS timer ic chip power ic chip
