IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET

China IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET supplier

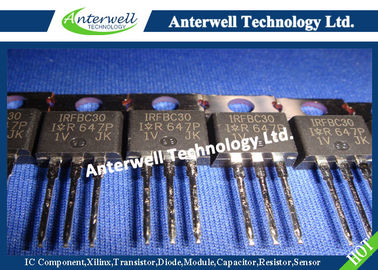

Large Image :  IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: IRFBC30

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8500pcs
Contact Now
Detailed Product Description
Drain-source Voltage (VGS = 0): 600 V Gate-source Voltage: ± 20 V
Drain Current (pulsed): 14 A Peak Diode Recovery Voltage Slope: 3 V/ns
Storage Temperature: -65 To 150 ℃ Max. Operating Junction Temperature: 150 ℃
High Light:

npn smd transistor

,

multi emitter transistor



IRFBC30

N - CHANNEL 600V - 1.8 Ω - 3.6A - TO-220 PowerMESHTM ΙΙ MOSFET



TYPE VDSS RDS(on) ID
IRFBC30 600 V < 2.2 Ω 3.6 A

IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET                 TO-220





■ TYPICAL RDS(on) = 1.8 Ω

■ EXTREMELY HIGH dv/dt CAPABILITY

■ 100% AVALANCHE TESTED

■ VERY LOW INTRINSIC CAPACITANCES

■ GATE CHARGE MINIMIZED



DESCRIPTION

The PowerMESHTM ΙΙ is the evolution of the first generation of MESH OVERLAYTM . The layout refinements introduced greatly improve the Ron*area figure of merit while keeping the device at the leading edge for what concerns switching speed, gate charge and ruggedness.



APPLICATIONS

■ HIGH CURRENT, HIGH SPEED SWITCHING

■ SWITH MODE POWER SUPPLIES (SMPS)

■ DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVER



ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit
VDS Drain-source Voltage (VGS = 0) 600 V
VDGR Drain- gate Voltage (RGS = 20 kΩ) 600 V
VGS Gate-source Voltage ± 20 V
ID Drain Current (continuous) at Tc = 25 ℃ 3.6 A
ID Drain Current (continuous) at Tc = 100 ℃ 2.3 A
IDM (•) Drain Current (pulsed) 14 A
Ptot Total Dissipation at Tc = 25 ℃ 75 W
  Derating Factor 0.6 W/℃
dv/dt(1) Peak Diode Recovery voltage slope 3 V/ns
Tstg Storage Temperature -65 to 150
Tj Max. Operating Junction Temperature 150

(•) Pulse width limited by safe operating area

( 1) ISD ≤3.6 A, di/dt ≤ 60 A/µs, VDD ≤ V(BR)DSS, Tj ≤ TJMAX



INTERNAL SCHEMATIC DIAGRAM

IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET



TO-220 MECHANICAL DATA

IRFBC30 dual power mosfet Power Mosfet Transistor N-CHANNEL 600V 1.8 ohm TO-220 PowerMESH]II MOSFET
