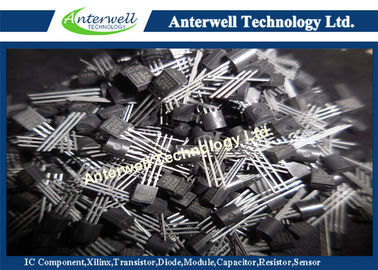

LM293GZ TO-92 Power Transistor Integrated circuit Chip IC Low Power Low Offset Voltage Dual Comparators

LM193/LM293/LM393/LM2903

Low Power Low Offset Voltage Dual Comparators

General Description

The LM193 series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage. Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. The LM193 series was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, the LM193 series will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators. The LM393 and LM2903 parts are available in National’s innovative thin micro SMD package with 8 (12 mil) large bumps.

Advantage

High precision comparators n Reduced VOS drift over temperature

Eliminates need for dual supplies

Allows sensing near ground

Compatible with all forms of logic

Power drain suitable for battery operation

Features

Wide supply

— Voltage range: 2.0V to 36V

— Single or dual supplies: ±1.0V to ±18V

Very low supply current drain (0.4 mA)

— independent of supply voltage

Low input biasing current: 25 nA

Low input offset current: ±5 nA

Maximum offset voltage: ±3 mV

Input common-mode voltage range includes ground

Differential input voltage range equal to the power supply voltage

Low output saturation voltage,: 250 mV at 4 mA

Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems

Available in the 8-Bump (12 mil) micro SMD package

See AN-1112 for micro SMD considerations
