STP20NM60FP N-channel Power MOSFET audio power mosfet smd power mosfet

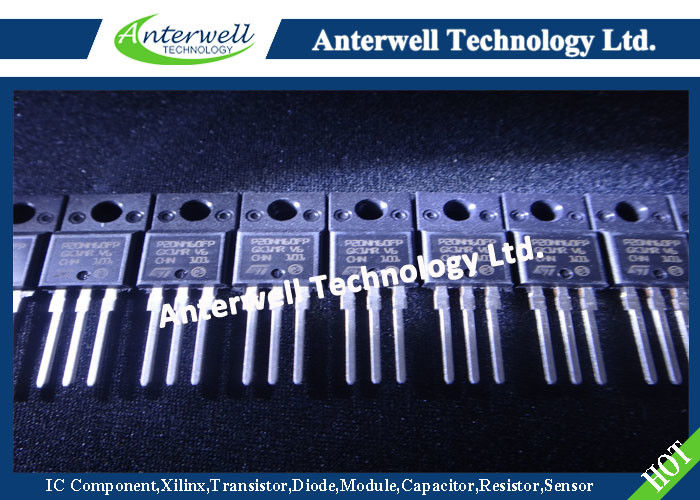

: Large Image : STP20NM60FP N-channel Power MOSFET audio power mosfet smd power mosfet

Product Details:

Place of Origin:	Original
Brand Name:	STMICROELECTRONICS
Certification:	Original Factory Pack
Model Number:	STP20NM60FP

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Drain-source Voltage (VGS = 0):	600 V	Gate- Source Voltage:	±30 V
Drain Current (continuous) At TC = 25°C:	20 A	Drain Current (continuous) At TC = 100°C:	12.6 A
Drain Current (pulsed):	80 A
High Light:	multi emitter transistor , silicon power transistors

N-channel 600V - 0.25Ω - 20A - TO-247 - TO-220/FP - D2/I2PAK MDmesh™ Power MOSFET

STP20NM60FP N-channel Power MOSFET audio power mosfet smd power mosfet Features

■ High dv/dt and avalanche capabilities

■ 100% avalanche tested

■ Low input capacitance and gate charge

■ Low gate input resistance

Applications

■ Switching applications

Description

The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company’s PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the company’s proprietary strip technique yields overall dynamic performance that is significantly better than that of similar competition’s products.

Device summary

Part number	Marking	Package	Packaging
STP20NM60	P20NM60	TO-220	Tube
STP20NM60FP	P20NM60FP	TO-220FP	Tube
STB20NM60T4	B20NM60	D²PAK	Tape & reel
STB20NM60-1	B20NM60-1	I²PAK	Tube
STW20NM60	W20NM60	TO-247	Tube

STP20NM60FP N-channel Power MOSFET audio power mosfet smd power mosfet
