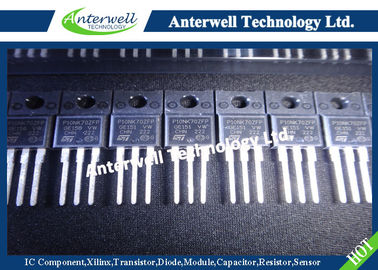

STP10NK70Z STP10NK70ZFP
N-CHANNEL 700V - 0.75Ω - 8.6A TO-220/TO-220FP
Zener-Protected SuperMESH™Power MOSFET
| TYPE | VDSS | RDS(on) | ID | Pw |
STP10NK70Z STP10NK70ZFP | 700 V 700 V | < 0.85 Ω < 0.85 Ω | 8.6 A 8.6 A | 150 W 35 W |
■ TYPICAL RDS(on) = 0.75 Ω
■ EXTREMELY HIGH dv/dt CAPABILITY
■ IMPROVED ESD CAPABILITY
■ 100% AVALANCHE RATED
■ GATE CHARGE MINIMIZED
■ VERY LOW INTRINSIC CAPACITANCES
■ VERY GOOD MANUFACTURING REPEATIBILITY
DESCRIPTION
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products.
APPLICATIONS
■ HIGH CURRENT, HIGH SPEED SWITCHING
■ IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC
ABSOLUTE MAXIMUM RATINGS
| Symbol | Parameter | Value | Unit | |
| STP10NK70Z | STP10NK70ZFP | |||
| VDS | Drain-source Voltage (VGS = 0) | 700 | V | |
| VDGR | Drain-gate Voltage (RGS = 20 kΩ) | 700 | V | |
| VGS | Gate- source Voltage | ± 30 | V | |
| ID | Drain Current (continuous) at TC = 25°C | 8.6 | 8.6 (*) | A |
| ID | Drain Current (continuous) at TC = 100°C | 5.4 | 5.4 (*) | A |
| IDM (•) | Drain Current (pulsed) | 34 | 34 (*) | A |
| PTOT | Total Dissipation at TC = 25°C | 150 | 35 | W |
| Derating Factor | 1.20 | 0.28 | W/°C | |
| VESD(G-S) | Gate source ESD(HBM-C=100pF, R=1.5KΩ) | 4000 | KV | |
| dv/dt (1) | Peak Diode Recovery voltage slope | 4.5 | V/ns | |
| VISO | Insulation Withstand Voltage (DC) | - | 2500 | V |
Tj Tstg | Operating Junction Temperature Storage Temperature | -55 to 150 -55 to 150 | °C °C | |
(•) Pulse width limited by safe operating area
(1) ISD ≤8.6A, di/dt ≤200A/µs, VDD ≤ V(BR)DSS, Tj ≤ TJMAX.
(*) Limited only by maximum temperature allowed
