SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor

China SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor supplier

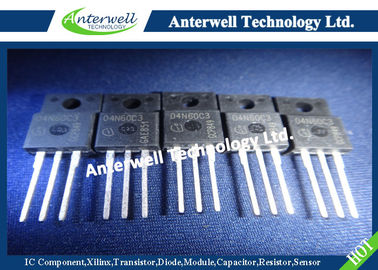

Large Image :  SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: SPA04N60C3

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8700pcs
Detailed Product Description
Drain-source Breakdown Voltage: 600 V Drain-Source Avalanche Breakdown Voltage: 700 V
Gate Threshold Voltage: 3 V Zero Gate Voltage Drain Current (Tj =25°C): 0.5 µA
Gate-source Leakage Current: 100 NA Gate Input Resistance: 0.95 Ω
High Light:

npn smd transistor

,

silicon power transistors


SPP04N60C3, SPB04N60C3
Final data SPA04N60C3

Cool MOSô Power Transistor


VDS @ Tjmax650V
RDS(on)0.95
ID4.5A

Feature
• New revolutionary high voltage technology
• Ultra low gate charge
• Periodic avalanche rated
• Extreme dv/dt rated
• High peak current capability
• Improved transconductance
• P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute)

  P-TO220-3-31          P-TO263-3-2           P-TO220-3-1
SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor

Maximum Ratings

ParameterSymbolValueUnit
SPP_BSPA

Continuous drain current

TC = 25 °C

TC = 100 °C

ID



4.5

2.8



4.51)

2.81)

A
Pulsed drain current, tp limited by TjmaxID puls13.513.5A
Avalanche energy, single pulse ID=3.4, VDD=50VEAS130130mJ
Avalanche energy, repetitive tAR limited by Tjmax2) ID=4.5A, VDD=50VEAR0.40.4mJ
Avalanche current, repetitive tAR limited by TjmaxIAR4.54.5A
Gate source voltage staticVGS±20±20V
Gate source voltage AC (f >1Hz)VGS±30±30
Power dissipation, TC = 25°CPtot5031W
Operating and storage temperatureTj , Tstg-55...+150°C

Drain Source voltage slope
VDS = 480 V, ID = 4.5 A, Tj = 125 °C

dv/dt50V/ns


P-TO-220-3-1
SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor

P-TO-263-3-2 (D2-PAK)
SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor

P-TO-220-3-31 (FullPAK)
SPA04N60C3 npn darlington power transistor Power Mosfet Transistor Cool MOS™ Power Transistor
