Product Details:
Payment & Shipping Terms:
|
| Continuous Drain Current, VGS @ 10V: | 60 A | Pulsed Drain Current: | 290 A |
|---|---|---|---|
| Power Dissipation: | 180 W | Linear Derating Factor: | 1.2 W/°C |
| Gate-to-Source Voltage: | ± 20 V | ||
| High Light: | npn smd transistor,multi emitter transistor |
||

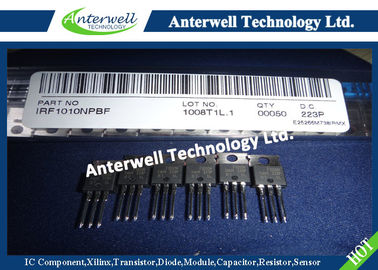

IRF1010N
HEXFET® Power MOSFET
Description
Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Absolute Maximum Ratings
| Parameter | Max. | Unit | |
| ID @ TC = 25°C | Continuous Drain Current, VGS @ 10V | 85 | A |
| ID @ TC = 100°C | Continuous Drain Current, VGS @ 10V | 60 | A |
| IDM | Pulsed Drain Current | 290 | A |
| PD @TC = 25°C | Power Dissipation | 180 | W |
| Linear Derating Factor | 1.2 | W/°C | |
| VGS | Gate-to-Source Voltage | ± 20 | V |
| IAR | Avalanche Current | 43 | A |
| EAR | Repetitive Avalanche Energy | 18 | mJ |
| dv/dt | Peak Diode Recovery dv/dt | 3.6 | V/ns |
|
TJ TSTG |
Operating Junction and Storage Temperature Range |
-55 to + 175 | °C |
| Soldering Temperature, for 10 seconds | 300 (1.6mm from case ) | °C | |
| Mounting torque, 6-32 or M3 srew | 10 lbf•in (1.1N•m) |
