2SK3569 Silicon Power Transistors N Channel MOS Type Switching Regulator Applications

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

2SK3569 Silicon Power Transistors N Channel MOS Type Switching Regulator Applications

China 2SK3569 Silicon Power Transistors N Channel MOS Type Switching Regulator Applications supplier

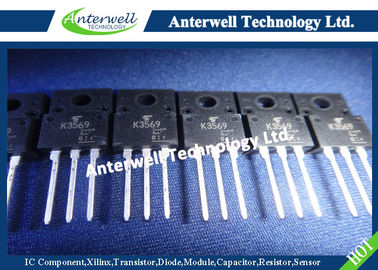

Large Image :  2SK3569 Silicon Power Transistors N Channel MOS Type Switching Regulator Applications

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: 2SK3569

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 7800pcs
Detailed Product Description
Weight: 1.7 G (typ.) Drain-source Voltage: 600 V
Drain Power Dissipation (Tc = 25°C): 45 W Single Pulse Avalanche Energy: 363 MJ
Avalanche Current: 10 A Channel Temperature: 150 °C
High Light:

npn smd transistor

,

silicon power transistors


2SK3569 Silicon Power Transistors N Channel MOS Type Switching Regulator Applications



TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSVI)

2SK3569


Switching Regulator Applications

• Low drain-source ON resistance: RDS (ON) = 0.54Ω (typ.)
• High forward transfer admittance: |Yfs| = 8.5S (typ.)
• Low leakage current: IDSS = 100 μA (VDS = 600 V)
• Enhancement mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA)

Absolute Maximum Ratings (Ta = 25°C)

Characteristics

Symbol

Rating

Unit

Drain-source voltage

VDSS

600

V

Drain-gate voltage (RGS = 20 kΩ)

VDGR

600

V

Gate-source voltage

VGSS

±30

V

Drain current

DC (Note 1)

ID

10

A

Pulse (t = 1 ms) (Note 1)

IDP

40

A

Drain power dissipation (Tc = 25°C)

PD

45

W

Single pulse avalanche energy (Note 2)

EAS

363

mJ

Avalanche current

IAR

10

A

Repetitive avalanche energy (Note 3)

EAR

4.5

mJ

Channel temperature

Tch

150

°C

Storage temperature range

Tstg

-55~150

°C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).

Thermal Characteristics

Characteristics

Symbol

Max

Unit

Thermal resistance, channel to case

Rth (ch-c)

2.78

°C/W

Thermal resistance, channel to ambient

Rth (ch-a)

62.5

°C/W

Note 1: Ensure that the channel temperature does not exceed 150℃.
Note 2: VDD = 90 V, Tch = 25°C(initial), L = 6.36 mH, IAR = 10 A, RG = 25 Ω
Note 3: Repetitive rating: pulse width limited by maximum channel temperature
This transistor is an electrostatic-sensitive device. Please handle with caution.
