GBPC3512A Mosfet Power Module SINGLE PHASE BRIDGE Power Modules

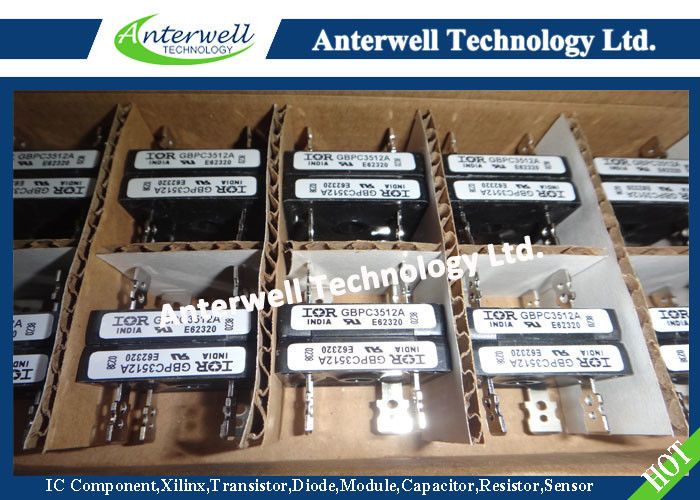

: Large Image : GBPC3512A Mosfet Power Module SINGLE PHASE BRIDGE Power Modules

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	GBPC3512A

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	3600pcs

Contact Now

Detailed Product Description

Junction Temperature Range:	-55 To 150 ℃	Storage Temperature Range:	-55 To 150 ℃
Approximate Weight:	16 G	VRRM Range:	200 To 1200 V
Maximum Forward Voltage Drop:	1.1 V	Max. DC Reverse Current:	5.0 µA
High Light:	low voltage power mosfet , hybrid inverter circuit

SINGLE PHASE BRIDGE Power Modules

Features

Universal, 3 way terminals: push-on, wrap around or solder
High thermal conductivity package, electrically insulated case
Polarity symbols are moulded on body of the plastic box
Center hole fixing
Glass passivated diode chips
Excellent power/ volume ratio
Nickel plated terminals suitable for High Temperature soldering at 250 - 260°C max. time 8 - 10 seconds
Wire lead version available
UL E 62320 approved

Description

A range of extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and instrumentation applications.

Major Ratings and Characteristics

Parameters		GBPC25	GBPC35	Units
I_O		25	35	A
I_O	@ T_C	60	55	℃
I _FSM	@50Hz	400	475	A
I _FSM	@ 60Hz	420	500	A
I ² t	@ 50Hz	790	1130	A²s
I ² t	@ 60Hz	725	1030	A²s
V_RRM range		200 to 1200		V
T_J		-55 to 150		℃
