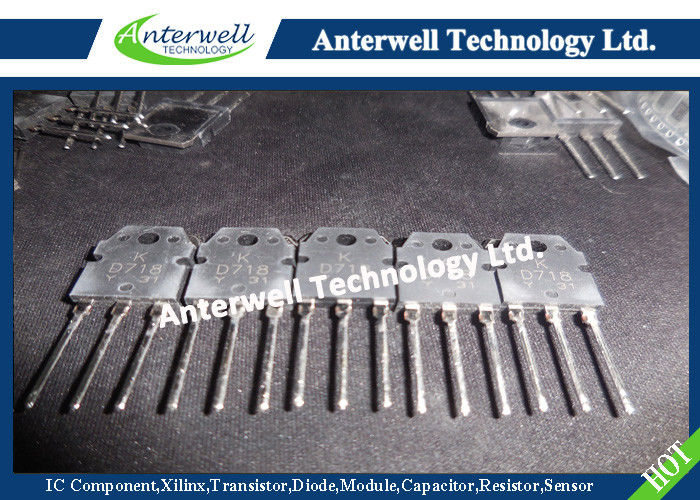

2SD718 POWER TRANSISTORS (8A,120V,80W) Electronic Component

: Large Image : 2SD718 POWER TRANSISTORS (8A,120V,80W) Electronic Component

Product Details:

Place of Origin:	Original
Brand Name:	MOSPEC
Certification:	Original
Model Number:	2SD718

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Price:	0.1USD
Packaging Details:	contact us for more details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000PCS/DAY

Contact Now

Detailed Product Description

APPLICATION:	45~50W Audio Frequency	Voltage:	160V
FEATURES:	High Current Capability	Symbol:	BVCBO
Material:	Metal	Type:	TRANSISTORS
High Light:	npn smd transistor , multi emitter transistor

2SD718 POWER TRANSISTORS

High Current Capability High Power Dissipation Complementary to 2SB688

ABSOLUTE MAXIMUM RATINGS (Ta=25℃)

PARAMETER	SYMBOL	RATINGS	UNIT
Collector-Base Voltage	VCBO	120	V
Collector-Emitter Voltage	VCEO	120	V
Emitter-Base Voltage	VEBO	5	V
Collector Current	Ic	10	A
Base Current	IB	1	A
Collector Power Dissipation (Tc=25℃)	Pc	80	W
Junction Temperature	Tj	150	℃
Storage Temperature Range	Tstg	-55 ~150	℃

CLASSIFICATION OF hFE

RANK	R	O
RANGE	55-110	80-160

2SD718 POWER TRANSISTORS (8A,120V,80W) Electronic Component
