BTA16-800B 3 Pin Transistor STANDARD TRIACS 16A TRIACS

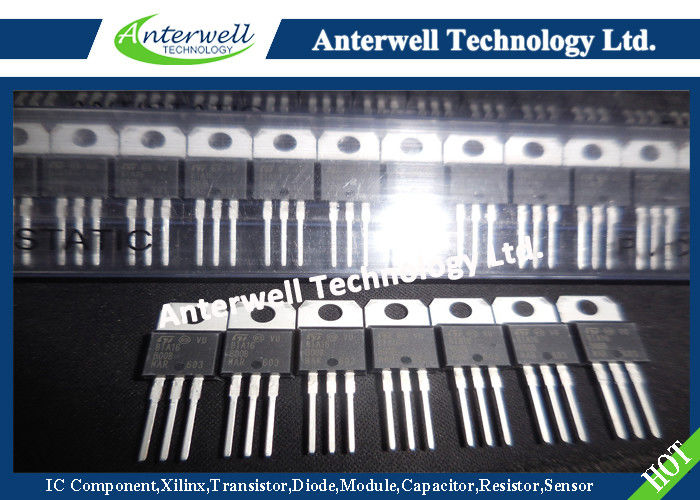

: Large Image : BTA16-800B 3 Pin Transistor STANDARD TRIACS 16A TRIACS

Product Details:

Place of Origin:	Original
Brand Name:	STMICROELECTRONICS
Certification:	Original Factory Pack
Model Number:	BTA16-800B

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

RMS On-state Current:	16 V	Non Repetitive Surge Peak On-state Current:	170 A
I2t Value:	128 A2s	Storage And Operating Junction Temperature Range:	- 40 To + 125 °C
Maximum Lead Temperature:	260 °C
High Light:	multi emitter transistor , silicon power transistors

STANDARD TRIACS

BTA16-800B 3 Pin Transistor STANDARD TRIACS 16A TRIACS

DESCRIPTION

The BTA/BTB16 B triac family are high performance glass passivated PNPN devices. These parts are suitables for general purpose applications where high surge current capability is required. Application such as phase control and static switching on inductive or resistive load.

FEATURES

►HIGH SURGE CURRENT CAPABILITY

►COMMUTATION : (dV/dt)c > 10V/µs .

►BTA Family : INSULATING VOLTAGE = 2500V(RMS) (UL RECOGNIZED : E81734)

THERMAL RESISTANCES

Symbol	Parameter	Value	Unit
Rth (j-a)	Junction to ambient	60	°C/W
Rth (j-c) DC	Junction to case for DC BTA BTB	2.9 2.3	°C/W
Rth (j-c) AC	Junction to case for 360° conduction angle ( F= 50 Hz) BTA BTB	2.2 1.75	°C/W
