NPN General Purpose Transistor BC848B

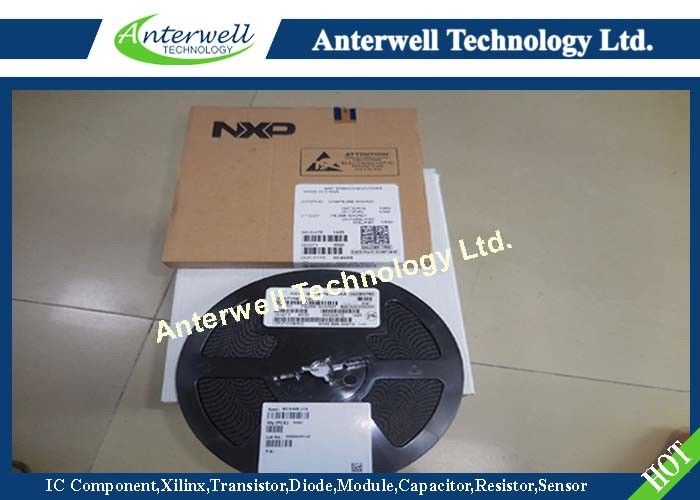

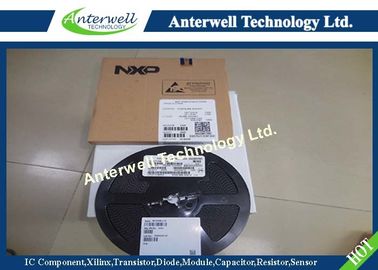

: Large Image : NPN General Purpose Transistor BC848B

Product Details:

Place of Origin:	original factory
Brand Name:	anterwell
Certification:	new & original
Model Number:	BC848B

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	300pcs

Contact Now

Detailed Product Description

Collector Current:	100mA	Peak Collector Current:	200mA
Peak Base Current:	200mA	Total Power Dissipation:	250mW
Junction Temperature:	150°C	Storage Temperature:	-65 To +150°C
High Light:	npn smd transistor , silicon power transistors

Features

• Low current (max. 100 mA).

• Low voltage (max. 65 V).

Absolute Maximum Ratings Ta = 25°C

Parameter	Symbol	BC846	BC847	BC848	Unit
Collector-base voltage	V_CBO	80	50	30	V
Collector-emitter voltage	V_CEO	65	45	30	V
Emitter-base voltage	V_EBO	6	6	5	V
Collector current	I_C	100			mA
Peak collector current	I_CM	200			mA
Peak base current	I_BM	200			mA
Total power dissipation *	P_tot	250			mW
Junction temperature	T_j	150			°C
Storage temperature	T_stg	-65 to +150			°C
Operating ambient temperature	R_amb	-65 to +150			°C
Thermal resistance from junction to ambient *	R_{th j-a}	500			K/W

* Transistor mounted on an FR4 printed-circuit board, standard footprint.

NPN General Purpose Transistor BC848B
