Product Details:
Payment & Shipping Terms:
|
VDRM / VRRM: | 500 V | T(RMS): | 2.0 A |
---|---|---|---|
ITSM: | 20 A | Tj: | 110 OC |
Tstg: | -45~150 OC | ||
High Light: | npn smd transistor,multi emitter transistor |

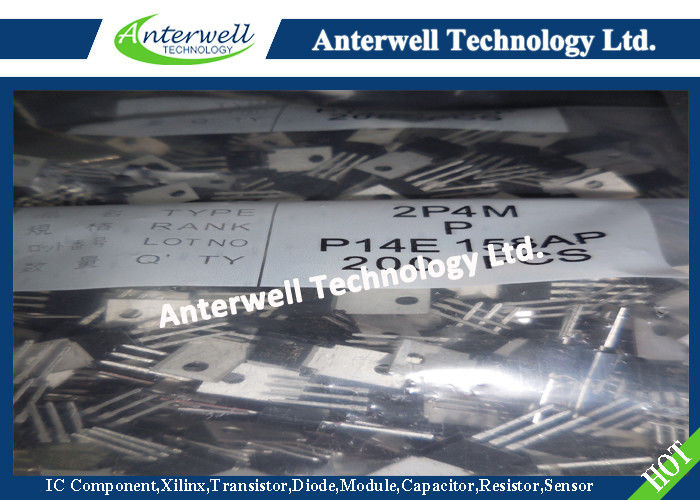

Triacs sensitive gate 2P4M 2P5M 2P6M
GENERAL DESCRIPTION
Passivated thyristors in a plastic envelope, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial domestic lighting, heating and staticand switching.
Absolute maximum ratings(Ta=25℃)
SYMBOL | PARAMETER | MIN | UNIT |
VDRM | Repetitive peak off-state voltage | 400 (note:RGK=1kΩ) | V |
VRRM | Repetitive peak reverse voltage | 400 (note:RGK=1kΩ) | V |
IT(AV) | On-state current | 2(Tc=77℃,θ=180. Single phase(1/2wave) | A |
ITSM | Surge non-repetitive on-state current | 20 | A |
PGM | Peak gate power dissipation | 0.5 (f ≥50Hz, Duty ≤10%) | W |
PG(AV) | Average gate power dissipation | 0.1 | W |
IFGM | Peak gate forward current | 0.2 (f ≥50Hz, Duty ≤10%) | A |
VRGM | Peak gate reverse voltage | 6 | V |
Tj | Junction temperature | -40 to + 125 | ℃ |
