Product Details:
Payment & Shipping Terms:
|
| DC Input Voltage: | 30 V | Output Current: | 100 MA |
|---|---|---|---|
| Power Dissipation: | Internally Limited (*) | Storage Temperature Range: | -40 To 150 °C |
| Operating Junction Temperature Range: | -40 To 125 °C | ||
| High Light: | npn smd transistor,silicon power transistors |
||

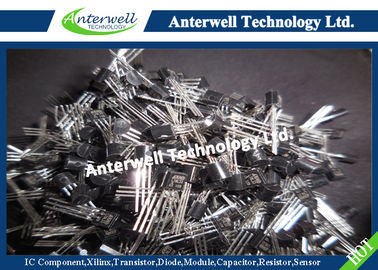

L78L33 positive voltage regulators , 3 Pin Transistor high power
■ OUTPUT CURRENT UP TO 100 mA
■ OUTPUT VOLTAGES OF 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 20; 24V
■ THERMAL OVERLOAD PROTECTION
■ SHORT CIRCUIT PROTECTION
■ NO EXTERNAL COMPONENTS ARE REQUIRED
■ AVAILABLE IN EITHER ±5% (AC) OR ±10% (C) SELECTION
DESCRIPTION
The L78L00 series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L00 series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
SCHEMATIC DIAGRAM
