Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399

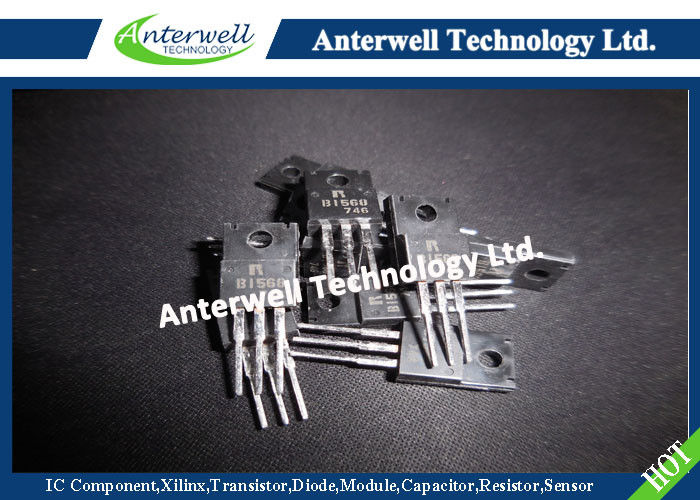

: Large Image : Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399

Product Details:

Place of Origin:	Original
Brand Name:	ROHM
Certification:	Original Factory Pack
Model Number:	B1568

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

Collector-base Voltage:	−80 V	Collector-emitter Voltage:	−80 V
Emitter-base Voltage:	−7 V	Collector Current:	−4 A(DC)
Collector Dissipation:	30 W(Tc=25°C)
High Light:	npn smd transistor , silicon power transistors

Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399

Features

1) Available in TO-220 FN package

2) Darling connection provides high dc current gain (hFE)

3) Damper diode is incorporated

4) Built in resistors between base and emitter

5) Two millimeters lower than TO-220 FP which allows higher density mounting

6) Complementary pair with 2SD2399

Applications

Power amplifler

Absolute maximum rating (Ta=25°C)

Paramete	Symbol	Limits	Unit
Collector-base voltage	V_CBO	-80	V
Collector-emitter voltage	V_CEO	-80	V
Emitter-base voltage	V_EBO	-7	v
Collector current	I_C I_CP	-4 -6	A(DC) A(Pulse)
Collector dissipation	P_C	2 30	W(Ta=25°C) W(Tc=25°C)
Junction temperature	T_j	150	°C
Storage temperature	Tstg	−55 to +150	°C

Electrical characteristics

Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399
