SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G

China SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G supplier

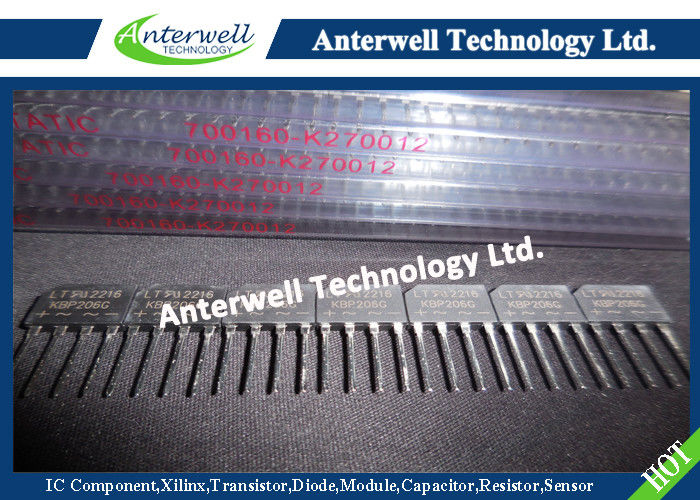

Large Image :  SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G

Product Details:

Place of Origin: Philippines
Brand Name: DIOTECH
Certification: Original Factory Pack
Model Number: KBP206G

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: please contact me for details
Delivery Time: 1
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20000
Contact Now
Detailed Product Description
Maximum Recurrent Peak Reverse Voltage: 800 V Maximum RMS Bridge Input Voltage: 560 V
Maximum DC Blocking Voltage: 800 V Maximum Average Forward Output Current At TA = 25o C: 2.0 A
Peak Forward Surge Current 8.3 Ms Single Half Sine-wave Superimposed On Rated Load (JEDEC Method): 60 A Operating And Storage Temperature Range: -55 To + 150 0 C
High Light:

npn smd transistor

,

multi emitter transistor

SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G



KBP201G THRU KBP207G

SINGLE PHASE SILICON BRIDGE RECTIFIER

Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere



SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206GFE A TURES

● Ideal for printed circuit board

● Surge overload rating: 60A peak

● High case dielectric strength

● High temperature soldering guaranteed: 260°C/10 seconds at 5lbs. (2.3kg) tension











MECHANICAL D A T A

● Case: UL-94 Class V-0 recognized Flame Retardant Epoxy

● Terminals: Plated leads solderable per MIL-STD 202, method 208

● Mounting Position: Any

● Weight: 1.70 g

● Marking: Type Number





RATINGS AND CHARACTERISTIC CURVES

SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G
