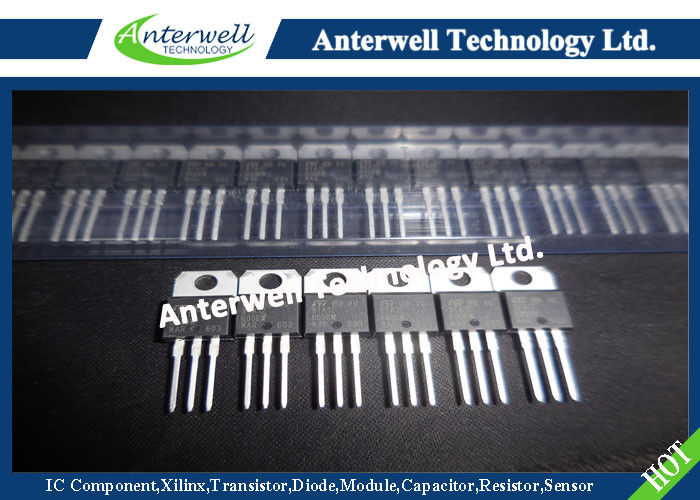

12A Bidirectional Triode Thyristor BTA12-600BW With Medium Current
Features
■ Medium current triac
■ Low thermal resistance with clip bonding
■ Low thermal resistance insulation ceramic for insulated BTA
■ High commutation (4Q) or very high commutation (3Q) capability
■ BTA series UL1557 certified (File ref: 81734)
■ Packages are RoHS ( 2002/95/EC) compliant
Applications
ON/OFF or phase angle function in applications such as static relays, light dimmers and appliance motors speed controllers. The snubberless versions (BTA/BTB...W and T12 series) are especially recommended for use on inductive loads, because of their high commutation performances.
The BTA series provides an insulated tab (rated at 2500 V RMS).
Description
Available either in through-hole or surface-mount packages, the BTA12, BTB12 and T12xx triac series is suitable for general purpose mains power AC switching.
Device summary
| Symbol | Parameter | T12xx | BTA12 (1) | BTB12 |
| IT(RMS) | RMS on-state current | 12 | 12 | 12 |
| VDRM/VRRM | Repetitive peak off-state voltage | 600/800 | 600/800 | 600/800 |
| IGT (Snubberless) | Triggering gate current | 10/35/50 | 5/10/35/50 | 5/10/35/50 |
| IGT (Standard) | Triggering gate current | - | 35/50 | 35/50 |
Figure 1. Maximum power dissipation versus RMS on-state current (full cycle)
Figure 2. RMS on-state current versus case temperature (full cycle)
Packaging information
Epoxy meets UL94, V0 In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a lead-free second level interconnect. The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com.
