STK403-030 Fraunhofer IAF Freiburg Split Power Supply Module SIP

China STK403-030  Fraunhofer IAF Freiburg Split Power Supply Module SIP supplier

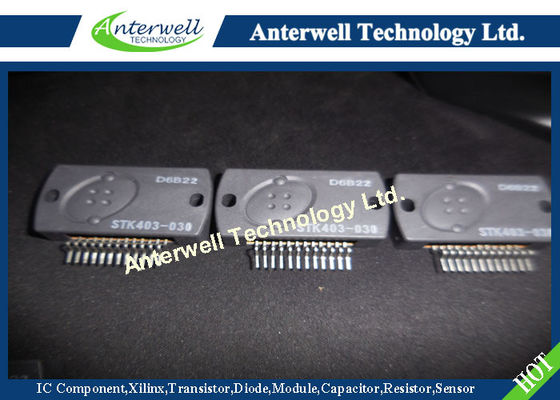

Large Image :  STK403-030 Fraunhofer IAF Freiburg Split Power Supply Module SIP

Product Details:

Place of Origin: Philippines
Brand Name: ANTERWELL
Certification: Original Factory Pack
Model Number: STK403-030

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: please contact me for details
Delivery Time: 1
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 560
Detailed Product Description
Storage Temperature: –30°C To +125°C Shipment: DHL, Fedex, UPS ,TNT
Main Link: Ic,module,transistor,diodes,capacitor,resistor Load Resistance: 8 Ω
Maximum Supply Voltage: ±45 Lot No.: D6B22
High Light:

thyristor diode module

,

low voltage power mosfet

STK403-030 Fraunhofer IAF Freiburg Split Power Supply Module SIP







STK403-030  AF Power Amplifier (Split Power Supply)

(35 W min, THD = 0.08%)



Features

• Compact packaging supports slimmer set designs (up to 70 W)

• Series designed for 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins)

• Simpler heat sink design facilitates thermal design of slim stereo sets

• Current mirror circuit application reduces distortion to 0.08%

• Supports addition of electronic circuits for thermal shutdown and load-short protection circuit as well as pop noise muting which occurs when the power supply switch is turned on and off





Specifications Maximum

Ratings at Ta = 25°C

Parameter Symbol Conditions Ratings  Unit
Maximum supply voltage Vcc Max   ±45 V
Thermal resistance θj-c   2.1 °C/W
Junction temperature Tj   150 ºC
Operating substrate temperature Tc   125 ºC
Storage temperature Tstg   -30 to +125 °
Available time for load shorted tS* VCC = ±30 V, RL = 8 Ω, f = 50 Hz, PO = 35 W

2

s



Description of External Parts

R1, C1 : Input filter circuit

• Reduces high-frequency noise.

C2 : Input coupling capacitor

• DC current suppression.

A reduction in reactance is effective because of increases in capacitor reactance at low frequencies and 1/f noise dependence on signal source resistance which result in output noise worsening.

R2 : Input bias resistor

• Biases the input pin to zero.

• Effects VN stability (refer to NF circuit).

• Due to differential input, input resistance is more or less determined by this resistance value.

R4, R5 : NFB circuit (AC NF circuit). Use of resistor with 1% error is suggested.

STK403-030  Fraunhofer IAF Freiburg Split Power Supply Module SIP
