FCX605TA 20V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR general purpose mosfet

China FCX605TA 20V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR general purpose mosfet supplier

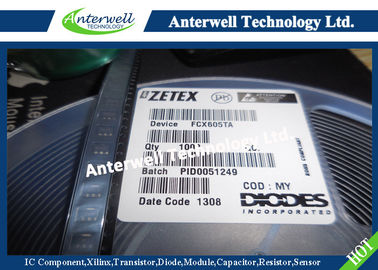

Large Image :  FCX605TA 20V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR general purpose mosfet

Product Details:

Place of Origin: Original
Brand Name: DIODES
Certification: Original Factory Pack
Model Number: FCX605TA

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: please contact me for details
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1570PCS
Contact Now
Detailed Product Description
Collector-Base Voltage: 140V Emitter-Base Voltage: 10V
Peak Pulse Current: 4A Storage Temperature Range: -55 To +150°C

FCX605TA 20V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR

DESCRIPTION
This new NPN Darlington transistor provides users with very efficeint performance combining low VCE (sat) and very high Hfe to give extremely low on state losses at 120V operation. This makes it deal for use in a variety of efficient driving functions including motors, lamps relays and solenoids and will also benefit circuits requiring high output current switching.

FEATURES

• Low Saturation Voltage
• Hfe min 2K @ 1A
• I C= 1A Continuous
• SOT89 package with Plot 1W
• Specification is also available in Eline and SOT223 package outlines

APPLICATIONS
• Various driving functions
                          - Lamps
                          - Motors
                          - Relays and solenoids
• High output current switches
ABSOLUTE MAXIMUM RATINGS.

PARAMETER SYMBOL LIMIT NPN UNIT
Collector-Base Voltage VCBO 140 V
Collector-Emitter Voltage VCEO 120 V
Emitter-Base Voltage VEBO 10 V
Peak Pulse Current ICM 4 A
Continuous Collector Current IC 1 A
Power Dissipation at TA=25°C (a)
Linear Derating Factor
PD 1
8
W
mW/°C

Power Dissipation at TA=25°C (b)

Linear Derating Factor

PD 2.8
2.2
W
mW/°C
Operating and Storage Temperature Range Tj:Tstg -55 to +150 °C


THERMAL RESISTANCE

PARAMETER SYMBOL VALUE UNIT
Junction to Ambient (a) RθJA 125 °C/W
Junction to Ambient (b) RθJA 45 °C/W


FCX605TA 20V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR general purpose mosfet
FCX605TA 20V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR general purpose mosfet
