SMD Code Diode RC0402

China SMD Code Diode RC0402 supplier

Large Image :  SMD Code Diode RC0402

Product Details:

Place of Origin: CHINA
Brand Name: YAGEO
Certification: Original Factory Pack
Model Number: RC0402JR-071K5L

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: negotiation
Packaging Details: please contect me for details
Delivery Time: 1 Day
Payment Terms: T/T , Western Union, Paypal
Supply Ability: 1000000PCS
Contact Now
Detailed Product Description
Item No.: 1K5 5% Package: SMD0402
Main Line: Ic,module,transistor,diodes,capacitor,resistor Etc Pack: 10000pcs/Reel
Operating Temperature: –55 °C To +155 °C Working Voltage: 50V---100V
Working Voltage: 50V---100V

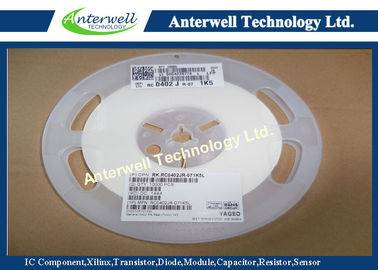

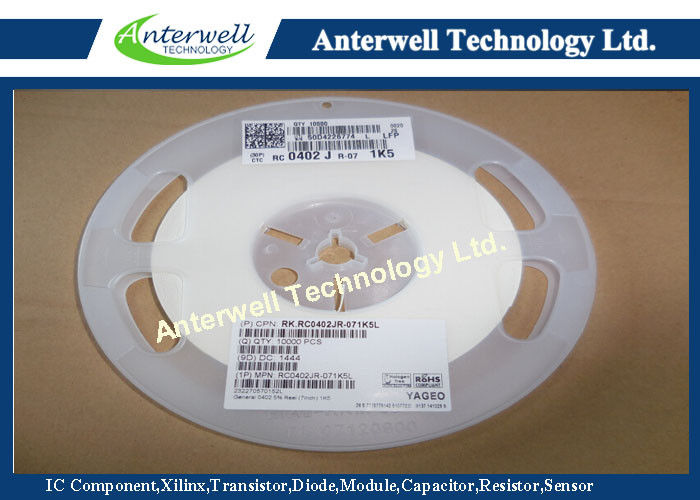

Resistors RC0402JR-071K5L SMD0402 1K5 5%



SCOPE



This specification describes RC0402 series chip resistors with lead-free terminations made by thick film process.



APPLICATIONS



z All general purpose application



FEATURES



z Halogen Free Epoxy z

RoHS compliant - Products with lead free terminations meet RoHS requirements

- Pb-glass contained in electrodes, resistor element and glass are exempted by RoHS z

Reducing environmentally hazardous wastes

z High component and equipment reliability

z Saving of PCB space

z None forbidden-materials used in products/production



ORDERING INFORMATION - GLOBAL PART NUMBER & 12NC



Both part numbers are identified by the series, size, tolerance, packing type, temperature coefficient, taping reel and resistance value.



YAGEO BRAND ordering code GLOBAL PART NUMBER (PREFERRED)

RC0402  X R - XX XXXX L (1) (2) (3) (4) (5) (6)

(1) TOLERANCE

F = ±1% J = ±5% (for Jumper ordering, use code of J)

(2) PACKAGING TYPE R = Paper taping reel

(3) TEMPERATURE COEFFICIENT OF RESISTANCE – = Base on spec

(4) TAPING REEL 07 = 7 inch dia. Reel 10 = 10 inch dia. Reel 13 = 13 inch dia. Reel

(5) RESISTANCE VALUE There are 2~4 digits indicated the resistor value. Letter R/K/M is decimal point, no need to mention the last zero after R/K/M,

e.g.1K2, not 1K20.

Detailed resistance rules show in table of “Resistance rule of global part number”.



ORDERING EXAMPLE

The ordering code of a RC0402 chip resistor, value 56 X with ±1% tolerance, supplied in 7-inch tape reel is: RC0402FR-0711K8L.



NOTE 1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. On customized label, "LFP" or specific symbol can be printed



ELECTRICAL CHARACTERISTICS



ELECTRICAL CHARACTERISTICS CHARACTERISTICS

RC0402 1/8 W Operating Temperature Range –55 °C to +155 °C

Maximum Working Voltage          50 V

Maximum Overload Voltage        100 V

Dielectric Withstanding Voltage  100 V

                                     5% (E24) 1 Ω to 22 MΩ

Resistance Range        1% (E24/E96) 1 Ω to 10 MΩ

                                     Zero Ohm Jumper < 0.05 Ω

                                              1 Ω ≤ R ≤ 10 Ω ±200 ppm/°C

 Temperature Coefficient       10 MΩ < R ≤ 22 MΩ ±200 ppm/°C

                                              10 Ω < R ≤ 10 MΩ ±100 ppm/°C

Rated Current                        2 A Jumper Criteria

                                              Maximum Current 5 A



FOOTPRINT AND SOLDERING PROFILES For recommended footprint and soldering profiles, please see the special data sheet “Chip resistors mounting”.



★ Capacitor/Resistor/Inductance SMD SIZE & PACKAGE ★



International Code Size Code Reel Quantity
(pcs)
Length
(mm)
Width
(mm)
Thickness
(mm)
01005 0402 20000 0.25 0.125 0.13
0201 0603 10000 0.6 0.3 0.3
0402 1005 10000 1.00±0.05 0.05±0.05 0.50±0.05
0603 1608 4000-5000 1.60±0.10 0.80±0.10 0.80±0.10
0805 2012 4000-5000 2.00±0.20 1.25±0.20 0.70±0.20
1206 3216 2000 3.20±0.30 1.60±0.20 0.70±0.20
1210 3225 2000 3.20±0.30 2.50±0.30 1.25±0.30
1808 4520 1000 4.50±0.40 2.00±0.20 2.00±0.30
1812 4532 1000 4.50±0.40 3.20±0.30 2.50±0.30
1825 4564 1000 4.50±0.40 6.40±0.40 0.61±0.36
2225 5764 1000 5.70±0.50 6.40±0.50 2.50±0.30
2512 6332 500 6.30±0.50 3.20±0.50 2.50±0.30
3035 7690 400 7.60±0.50 9.00±0.05 3.00±0.30
case A 3216 2000 3.20±0.20 1.60±0.20 1.60±0.20
case B 3528 2000 3.50±0.20 2.80±0.20 1.90±0.20
case C 6032 500 6.00±0.20 3.20±0.20 2.60±0.20
case D 7343 500 30±0.20 4.30±0.20 2.80±0.20
case E 7343H 400 7.30±0.20 4.10±0.20 4.00±0.20



SMD Code Diode RC0402
