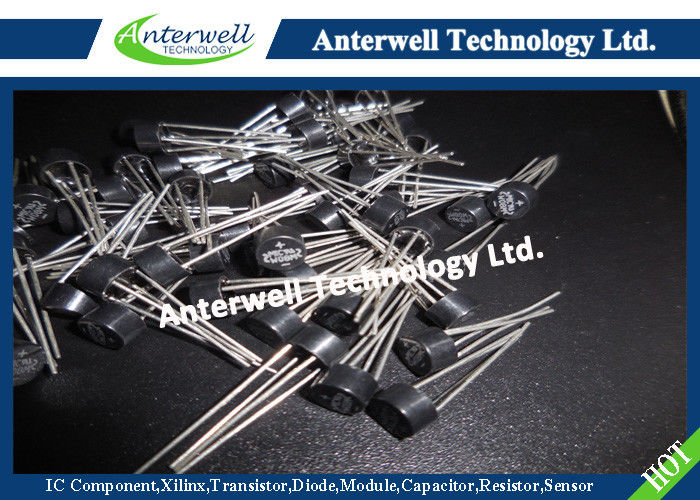

2W005M - 2W10M
Single Phase 2.0 AMPS. Silicon Bridge Rectifiers
Features
• UL Recognized File # E-96005
• Surge overload ratings to 50 amperes peak
• Ideal for printed circuit board
• Reliable low cost construction technique results
in inexpensive product
• High temperature soldering guaranteed:
260 ℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
Mechanical Data
Case: Molded plastic
Lead: Pure tin plated, Lead free.
Polarity: As marked
Weight: 1.10 grams
Maximum Ratings and Electrical Characteristics
Rating at 25 ℃ ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
| Type Number | Symbol |
2W 005M |
2W 01M |
2W 02M |
2W 04M |
2W 06M |
2W 08M |
2W 10M |
Units |
|---|---|---|---|---|---|---|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Maximum Average Forward Rectified Current @TA = 50℃ |
I(AV) | 2.0 | A | ||||||
| Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ) | IFSM | 50 | A | ||||||
| Maximum Instantaneous Forward Voltage @ 2.0A | VF | 1.1 | V | ||||||
|
Maximum DC Reverse Current @ TA=25℃ at Rated DC Blocking Voltage @ TA=125℃ |
IR |
10 500 |
uA | ||||||
| Typical Thermal resistance (Note) |
RθJA RθJL |
40 15 |
℃/W | ||||||
| Operating Temperature Range | TJ | -55 to +125 | ℃ | ||||||
| Storage Temperature Range | TSTG | -55 to +150 | ℃ | ||||||
Note: Thermal Resistance from Junction to Ambient and from Junction to Lead at 0.375” (9.5mm) Lead Length for P.C.B. Mounting.
