Product Details:
Payment & Shipping Terms:
|
| Peak Pulse Power Dissipation: | 1500 W | Standard Breakdown Voltage: | 6.8...440 V |
|---|---|---|---|
| Steady State Power Dissipation: | 6.5 W | Peak Forward Surge Current, 60 Hz Half Sine-wave: | 200 A |
| Junction Temperature: | -50...+175°C | Storage Temperature: | -50...+175°C |
| Highlight: | bridge rectifier circuit,signal schottky diode |
||

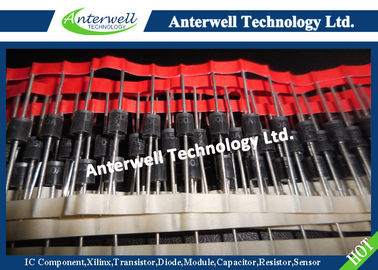

1.5KE6.8 ... 1.5KE440CA
Unidirectional and bidirectional Transient Voltage Suppressor Diodes
• Peak pulse power dissipation 1500 W
• Standard breakdown voltage range 6.8...440 V
• Plastic case Ø 5.4 x 7.5 [mm]
• Weight approx. 1.0 g
• Plastic material has UL classification 94V-0
• Standard packaging taped in ammo pack
Maximum ratings and Characteristics
| Peak pulse power dissipation (10/1000 µs waveform) | TA = 25°C | PPPM | 1500 W 1 ) |
| Steady state power dissipation | TA = 75°C | PM(AV) | 6.5 W 2 ) |
| Peak forward surge current, 60 Hz half sine-wave | TA = 25°C | IFSM | 200 A 3 ) |
| Max. instantaneous forward voltage IF = 100 A |
VBR ≤ 200 V VBR > 200 V |
VF |
< 3.5 V 3) < 5 V 3) |
| Junction temperature | Tj | -50...+175°C | |
| Storage temperature | Ts | -50...+175°C | |
| Thermal resistance junction to ambient air | RthA | < 19 K/W 2 ) | |
| Thermal resistance junction to terminal | RthT | < 8 K/W |
1 Non-repetitive pulse see curve IPP = f (tr ) / PPP = f (tr )
2 Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
3 Unidirectional diodes only
