SUD40N06-25L Power Mosfet Transistor N-Channel MOSFET, Logic Level

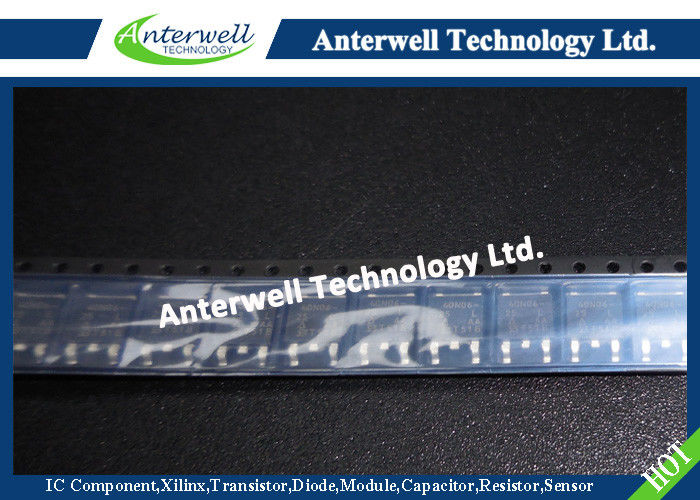

: Large Image : SUD40N06-25L Power Mosfet Transistor N-Channel MOSFET, Logic Level

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SUD40N06-25L

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Gate-Source Voltage:	±20 V	Pulsed Drain Current:	100 A
Continuous Source Current:	34 A	Avalanche Current:	34 A
Repetitive Avalanche Energy:	58 MJ	Operating Junction And Storage Temperature:	–55 To 175 ℃
High Light:	multi emitter transistor , silicon power transistors

SUD40N06-25L

N-Channel 60-V (D-S), 175℃ MOSFET, Logic Level

PRODUCT SUMMARY

V_DS (V)	r_DS(on) (Ω)	I_D (A)^a
60	0.022 @ V_GS = 10 V	30
60	0.025 @ V_GS = 4.5 V	30

SUD40N06-25L Power Mosfet Transistor N-Channel MOSFET, Logic Level

ABSOLUTE MAXIMUM RATINGS (T_C=25℃ UNLESS OTHERWISE NOTED)

Parameter		Symbol	Limit	Unit
Gate-Source Voltage		V_GS	±20	V
Continuous Drain Current (T_J = 175℃)^b	T_C = 25℃	I_D	30	A
Continuous Drain Current (T_J = 175℃)^b	T_C=100℃	I_D	30	A
Pulsed Drain Current		I_DM	100	A
Continuous Source Current (Diode Conduction)		I_S	34	A
Avalanche Current		I_AR	34	A
Repetitive Avalanche Energy (Duty Cycle 1%)	L = 0.1 mH	E_AR	58	mJ
Maximum Power Dissipation	T_C = 25℃	P_D	75	W
Maximum Power Dissipation	T_A= 25℃	P_D	1.4^b, 2.5^c	W
Operating Junction and Storage Temperature Range		T_J, T_stg	–55 to 175	℃
