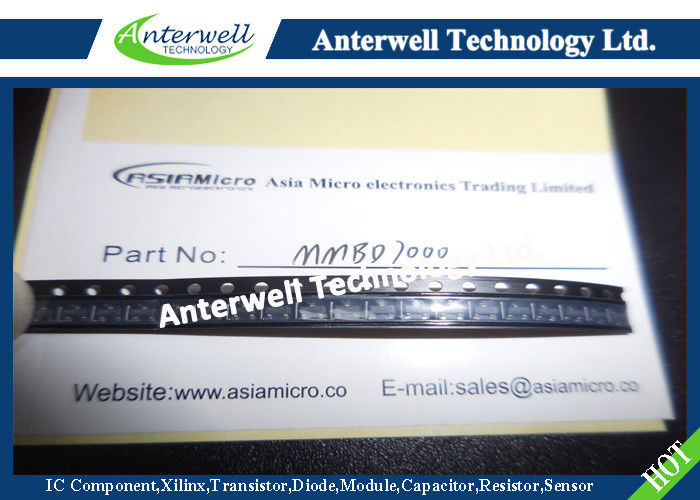

MMBD7000 Rectifier Diode fast recovery diode SURFACE MOUNT SWITCHING DIODE

: Large Image : MMBD7000 Rectifier Diode fast recovery diode SURFACE MOUNT SWITCHING DIODE

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	MMBD7000

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	60000pcs

Contact Now

Detailed Product Description

Non-Repetitive Peak Reverse Voltage:	100 V	DC Reverse Voltage:	100 V
Forward Current:	200 MA	Power Dissipation:	330 MW
Operating Junction Temperature:	150 ℃	Storage Temperature:	-65 To +150 ℃
Highlight:	diode rectifier circuit , signal schottky diode

Surface mount switching diode MMBD7000

FEATURES

For high-speed switching appilication.

Connected in series.

APPLICATIONS

High speed switching application.

ORDERING INFORMATION

Type No.	Marking	Package Code
MMBD7000	M5C	SOT-23

MMBD7000 Rectifier Diode fast recovery diode SURFACE MOUNT SWITCHING DIODE

MAXIMUM RATING @ Ta=25℃ unless otherwise specified

Characteristic	Symbol	Limits	Unit
Non-Repetitive Peak Reverse Voltage	V_RM	100	V
DC Reverse Voltage	V_R	100	V
Forward Current	I_F	200	mA
Suge forward Current, t=1μs	I_FS	4.5	A
Power Dissipation	Pd	330	mW
Operating Junction Temperature Range	Tj	150	℃
Storage Temperature Range	Tstg	-65 to +150	℃

PACKAGE OUTLINE

Plastic surface mounted package SOT-23

MMBD7000 Rectifier Diode fast recovery diode SURFACE MOUNT SWITCHING DIODE
