MBR20100CTG Switchmode Power Rectifiers Schottky Barrier Rectifiers

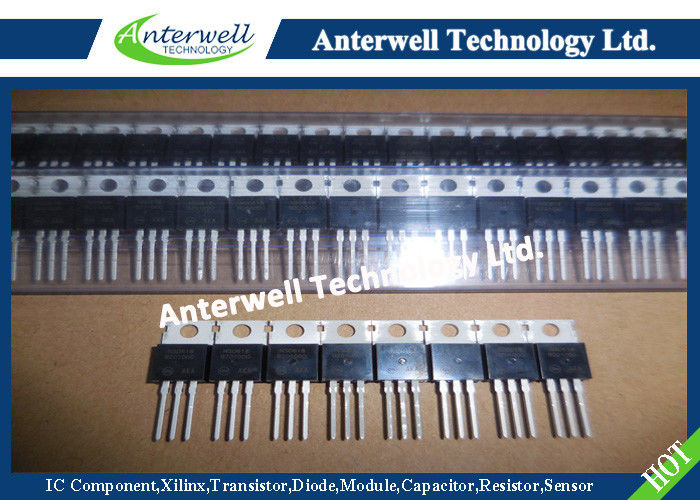

: Large Image : MBR20100CTG Switchmode Power Rectifiers Schottky Barrier Rectifiers

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	MBR20100CTG

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8300pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:	100 V	Working Peak Reverse Voltage:	100 V
DC Blocking Voltage:	100 V	Average Rectified Forward Current:	10 A
Peak Repetitive Forward Current:	20 A	Voltage Rate Of Change:	10,000 V/s
High Light:	bridge rectifier circuit , signal schottky diode

MBR2080CT, MBR2090CT, MBR20100CT

SWITCHMODE™ Power Rectifiers

SCHOTTKY BARRIER RECTIFIERS

20 AMPERES

80−100 VOLTS

This series uses the Schottky Barrier principle with a platinum barrier metal. These state−of−the−art devices have the following features:

Features

• 20 A Total (10 A Per Diode Leg)

• Guard−Ring for Stress Protection

• Low Forward Voltage

• 175°C Operating Junction Temperature

• Epoxy Meets UL 94 V−0 @ 0.125 in

• Low Power Loss/High Efficiency

• High Surge Capacity

• Low Stored Charge Majority Carrier Conduction

• Shipped 50 units per plastic tube

• Pb−Free Packages are Available*

Mechanical Characteristics:

• Case: Epoxy, Molded

• Weight: 1.9 grams (approximately)

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

MBR20100CTG Switchmode Power Rectifiers Schottky Barrier Rectifiers

MAXIMUM RATINGS (Per Diode Leg)

Rating	Symbol	MBR			Unit
Rating	Symbol	2080CT	2090CT	20100CT	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	80	90	100	V
Average Rectified Forward Current (Rated V_R) T_C = 133°C	I_F(AV)	10			A
Peak Repetitive Forward Current (Rated V_R, Square Wave, 20 kHz) T_C= 133°C	I_FRM	20			A
Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz)	I_FSM	150			A
Peak Repetitive Reverse Surge Current (2.0 s, 1.0 kHz)	I_RRM	0.5			A
Operating Junction Temperature (Note 1)	T_J	-65 to +175			°C
Storage Temperature	Tstg	-65 to +175			°C
Voltage Rate of Change (Rated V_R)	dv/dt	10000			V/μs

1. The heat generated must be less than the thermal conductivity from Junction−to−Ambient: dPD/dTJ < 1/RJA.
