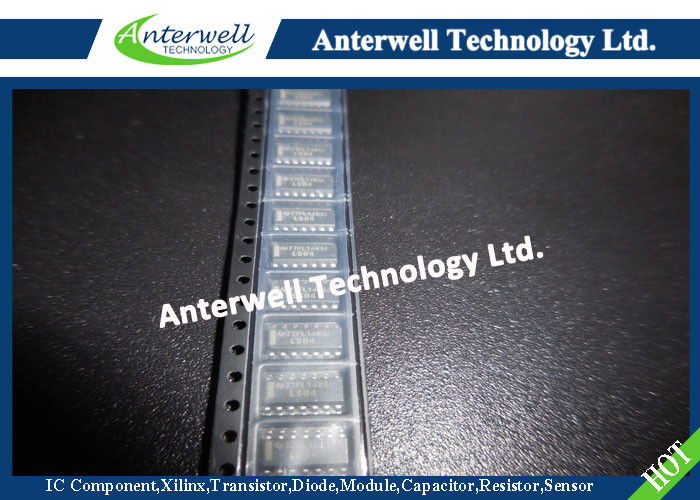

SN74LS04DR Rectifier Diode HEX INVERTERS Hybrid Inverter Circuit Led Circuit Board Design

: Large Image : SN74LS04DR Rectifier Diode HEX INVERTERS Hybrid Inverter Circuit Led Circuit Board Design

Product Details:

Place of Origin:	Original
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	SN74LS04DR

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Supply Voltage, VCC (see Note 1):	7 V	Input Voltage, VI : ’04, ’S04:	5.5 V
Package Thermal Impedance, θJA (see Note 2:	86 .. °C/W	Storage Temperature Range, Tstg:	–65°C To 150°C
VEC:	7 V
High Light:	diode rectifier circuit , signal schottky diode

SN74LS04DR HEX INVERTERS hybrid inverter circuit led circuit board design

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V

Input voltage, VI : ’04, ’S04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V

’LS04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V

Package thermal impedance, θJA (see Note 2):

D package 86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

DB package 96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

N package 80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

NS package 76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

Storage temperature range, Tstg . . . . . . . . . .. . . . . –65°C to 150°C

SN74LS04DR Rectifier Diode HEX INVERTERS Hybrid Inverter Circuit Led Circuit Board Design
