Product Details:
Payment & Shipping Terms:
|
| Device Marking Code: | S6 | Maximum Repetitive Peak Reverse Voltage: | 60 V |
|---|---|---|---|
| Maximum RMS Voltage: | 42 V | Maximum DC Blocking Voltage: | 60 V |
| Voltage Rate Of Change: | 10 000 V/µs | Storage Temperature: | - 65 To + 150 °C |
| Highlight: | bridge rectifier circuit,signal schottky diode |
||

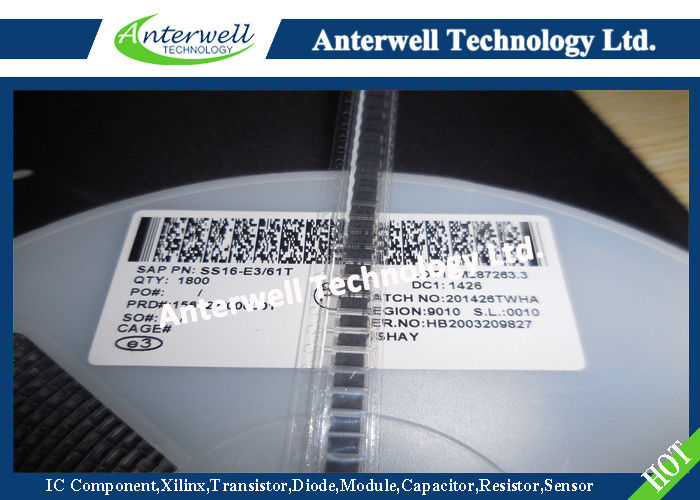

SS12 thru SS16
Surface Mount Schottky Barrier Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in low voltage, high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.
MECHANICAL DATA
Case: DO-214AC (SMA)
Epoxy meets UL 94V-0 flammability rating
Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102
E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test
Polarity: Color band denotes the cathode end
PRIMARY CHARACTERISTICS
| IF(AV) | 1.0 A |
| VRRM | 20 V to 60 V |
| IFSM | 40 A |
| VF | 0.50 V, 0.75 V |
| TJ max. | 125 °C, 150 °C |
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
| PARAMETER | SYMBOL | SS12 | SS13 | SS14 | SS15 | SS16 | UNIT |
|---|---|---|---|---|---|---|---|
| Device marking code | S2 | S3 | S4 | S5 | S6 | ||
| Maximum repetitive peak reverse voltage | VRRM | 20 | 30 | 40 | 50 | 60 | V |
| Maximum RMS voltage | VRMS | 14 | 21 | 28 | 35 | 42 | V |
| Maximum DC blocking voltage | VDC | 20 | 30 | 40 | 50 | 60 | V |
| Maximum average forward rectified current at TL (Fig. 1) | IF(AV) | 1.0 | A | ||||
| Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load | IFSM | 40 | A | ||||
| Voltage rate of change (rated VR) | dV/dt | 10000 | V/µs | ||||
| Operating junction temperature range | TJ | -65 to + 125 | -65 to + 150 | °C | |||
| Storage temperature range | TSTG | -65 to + 150 | °C | ||||
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
