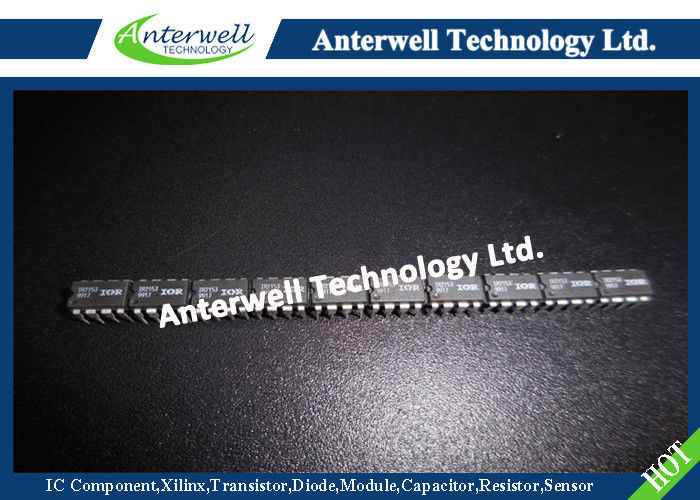

Sn7407dr Integrated Circuit Components Chip Power Ic Chip Hex Buffers / Drivers

IR2153(D)(S) &(PbF)

SELF-OSCILLATING HALF-BRIDGE DRIVER

Features

• Integrated 600V half-bridge gate driver

• 15.6V zener clamp on Vcc

• True micropower start up

• Tighter initial deadtime control

• Low temperature coefficient deadtime

• Shutdown feature (1/6th Vcc) on C_T pin

• Increased undervoltage lockout Hysteresis (1V)

• Lower power level-shifting circuit

• Constant LO, HO pulse widths at startup

• Lower di/dt gate driver for better noise immunity

• Low side output in phase with R_T

• Internal 50nsec (typ.) bootstrap diode (IR2153D)

• Excellent latch immunity on all inputs and outputs

• ESD protection on all leads

• Also available LEAD-FREE

Description

The IR2153D(S) are an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR2153 provides more functionality and is easier to use than previous ICs. A shutdown feature has been designed into the C_T pin, so that both gate driver outputs can be disabled using a low voltage control signal.

In addition, the gate driver output pulse widths are the same once the rising undervoltage lockout threshold on V_CC has been reached, resulting in a more stable profile of frequency vs time at startup. Noise immunity has been improved significantly, both by lowering the peak di/dt of the gate drivers, and by increasing the undervoltage lockout hysteresis to 1V. Finally, special attention has been payed to maximizing the latch immunity of the device, and providing comprehensive ESD protection on all pins.

Product Summary

V_OFFSET             600V max.

Duty Cycle             50%

 Tr/Tp                  80/40ns

 Vclamp                15.6V

Deadtime (typ.)    1.2 µs

Absolute Maximum Ratings

Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM, all currents are defined positive into any lead. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions.

Note 1: This IC contains a zener clamp structure between the chip V_CC and COM which has a nominal breakdown voltage of 15.6V. Please note that this supply pin should not be driven by a DC, low impedance power source greater than the V_CLAMP specified in the Electrical Characteristics section.

Packages

Typical Connections
