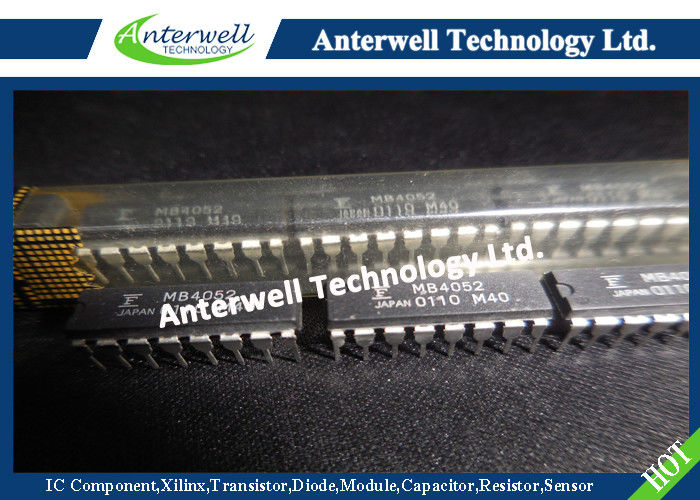

MB4052 Integrated Circuit Chip 1 Channel 8-bit A/D Converter

1 Channel 8-bit A/D Converter MB40528

DESCRIPTION

The MB40528 is a full parallel comparison (flash) type 8-bit resolution analog-to-digital converter, designed for various video and image processing applications.

The MB40528 has 8-bit resolution 1 channel A/D converter. Input analog data are converted into digital data by the A/D converter in minimum 60 Mega samples per seconds (MSPS).

The analog data is provided in a range of DC +3V to +5V (2Vp-p level) and the output digital data in TTL level.

The MB40528 is fabricated by the Fujitsu’s advanced bipolar process and housed in a 20-pin plastic DIP/SOP.

The MB40528 is suitable for various video and image applications.

FEATURES

• Conversion method : Full parallel comparison type

• 8-bit x 1 channel A/D converter

• Max. 60 MHz input clock frequency providing 60 MSPS data conversion rate

• Linearity error : Typical +/-0.15%

• Analog input voltage range : 3V to 5V (2Vp-p level)

• Digital input/output voltage level : TTL level

• On-chip reference voltage generator

• Low power consumption : Typical 400mW

• Single +5V power supply

• Operating temperature range : -20°C to +70°C

• Fujitsu’s advanced bipolar process

ABSOLUTE MAXIMUM RATINGS

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

PACKAGES

PIN ASSIMENT

BLOCK DIAGRAM
