2SD1880 Power Mosfet Transistor Silicon NPN Power Transistors

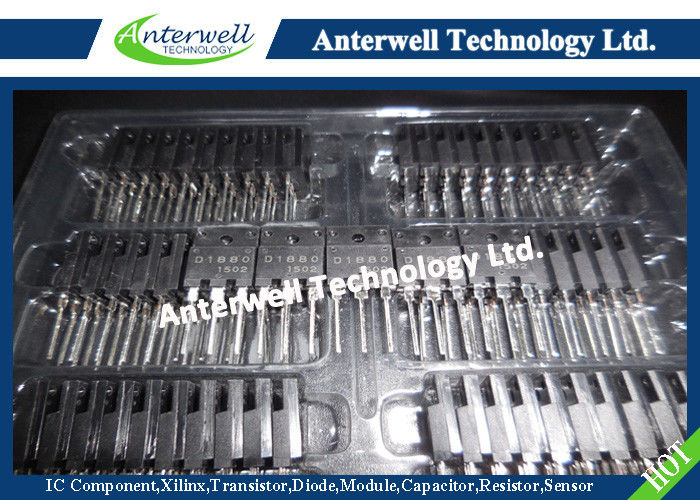

: Large Image : 2SD1880 Power Mosfet Transistor Silicon NPN Power Transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SD1880

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9200pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	1500 V	Collector-emitter Voltage:	800 V
Emitter-base Voltage:	6 V	Collector Current:	8 A
Collector Current-peak:	30 A	Collector Power Dissipation:	70 W
Highlight:	power mosfet ic , multi emitter transistor

Silicon NPN Power Transistors 2SD1880

DESCRIPTION

·With TO-3PML package

·High speed

·High breakdown voltage

·High reliability

·Built in damper diode

APPLICATIONS

·Color TV horizontal deflection output

·Color display horizontal deflection output.

Absolute maximum ratings(Ta=25℃)

SYMBOL	PARAMETER	CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	Open emitter	1500	V
V_CEO	Collector-emitter voltage	Open base	800	V
V_EBO	Emitter-base voltage	Open collector	6	V
I_C	Collector current		8	A
I_CM	Collector current-peak		30	A
P_C	Collector power dissipation		70	W
Tj	Junction temperature		150	℃
Tstg	Storage temperature		-55~150	℃

PINNING

PIN	DESCRIPTION
1	Base
2	Collector
3	Emitter

PACKAGE OUTLINE

2SD1880 Power Mosfet Transistor Silicon NPN Power Transistors
