2SA1736 High Power Mosfet Transistors Power Amplifier , Switching Applications

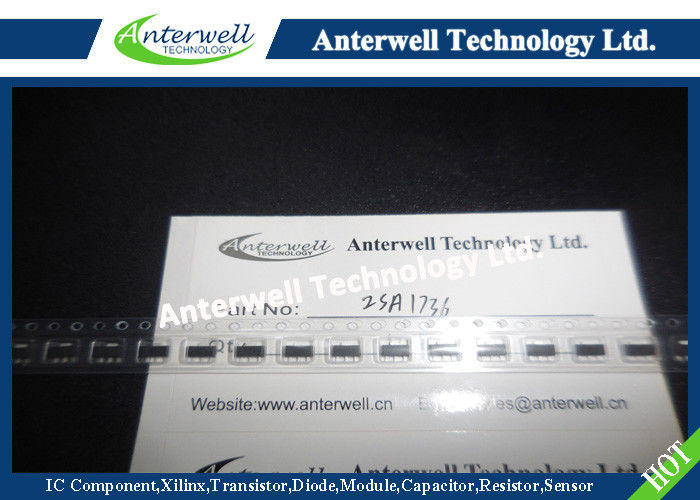

: Large Image : 2SA1736 High Power Mosfet Transistors Power Amplifier , Switching Applications

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SA1736

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	12000pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	−60 V	Collector-emitter Voltage:	−50 V
Emitter-base Voltage:	−6 V	Collector Current:	−3 A
Base Current:	−0.6 A	Junction Temperature:	150 °C
High Light:	multi emitter transistor , silicon power transistors

2SA1736

Power Amplifier Applications

Power Switching Applications

• Low saturation voltage: V_{CE (sat)} = −0.5 V (max) (I_C = −1.5 A)

• High speed switching time: t_stg = 0.2 μs (typ.)

• Small flat package

• P_C = 1.0 to 2.0 W (mounted on a ceramic substrate)

• Complementary to 2SC4541

Absolute Maximum Ratings (Ta = 25°C)

Characteristics	Symbol	Rating	Unit
Collector-base voltage	V_CBO	−60	V
Collector-emitter voltage	V_CEO	−50	V
Emitter-base voltage	V_EBO	−6	V
Collector current	I_C	−3	A
Base current	I_B	−0.6	A
Collector power dissipation	P_C	500	mW
Collector power dissipation	P_C (Note 1)	1000	mW
Junction temperature	T_j	150	°C
Storage temperature range	T_stg	−55 to 150	°C

Note 1: Mounted on a ceramic substrate (250 mm2 × 0.8 t)

Note 2: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
