TIP41C Power Mosfet Module Transistor Complementary Silicon Power Transistors

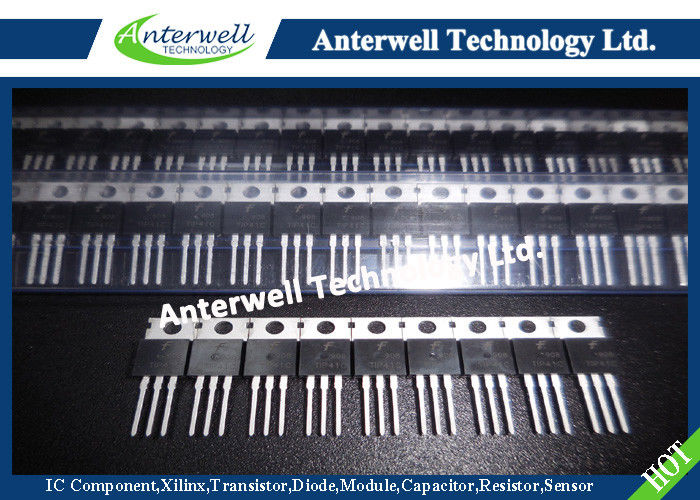

: Large Image : TIP41C Power Mosfet Module Transistor Complementary Silicon Power Transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TIP41C

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7900pcs

Contact Now

Detailed Product Description

Collector-Base Voltage:	100 V	Collector-Emitter Voltage:	100 V
Emitter-Base Voltage:	5 V	Collector Current:	6 A
Collector Peak Current:	10 A	Base Current:	3 A
Highlight:	multi emitter transistor , silicon power transistors

TIP41A/41B/41C TIP42A/42C

COMPLEMENTARY SILICON POWER TRANSISTORS

■ COMPLEMENTARY PNP - NPN DEVICES

DESCRIPTION

The TIP41A, TIP41B and TIP41C are silicon Epitaxial-Base NPN power transistors mounted in Jedec TO-220 plastic package. They are intented for use in medium power linear and switching applications.

The TIP41A and TIP41C complementary PNP types are TIP42A and TIP42C respectively

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter		Value			Unit
		NPN	TIP41A	TIP41B	TIP41C
		PNP	TIP42A		TIP42C
V_CBO	Collector-Base Voltage (I_E = 0)		60	80	100	V
V_CEO	Collector-Emitter Voltage (I_B = 0)		60	80	100	V
V_EBO	Emitter-Base Voltage (I_C = 0)		5			V
I_C	Collector Current		6			A
I_CM	Collector Peak Current		10			A
I_B	Base Current		3			A
P_tot	Total Dissipation at Tcase ≤ 25 ℃ Tamb ≤ 25 ℃		65 2			W W
Tstg	Storage Temperature		-65 to 150			℃
Tj	Max. Operating Junction Temperature		150			℃

For PNP types voltage and current values are negative.
