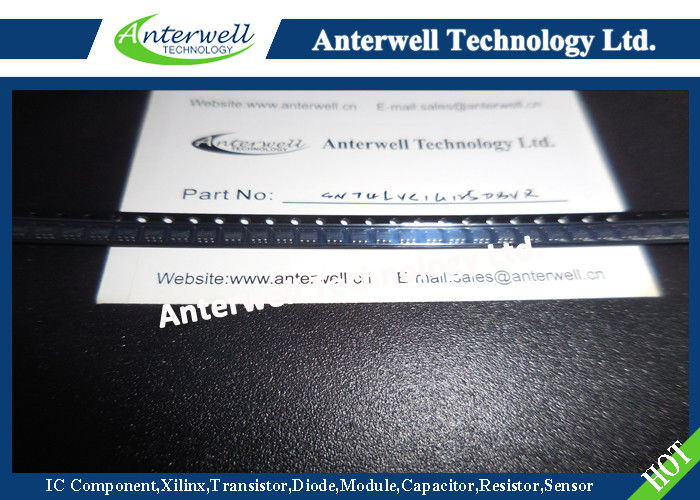

SN74LVC1G125 (ACTIVE)

Single Bus Buffer Gate With 3-State Outputs

Description

DESCRIPTION/ORDERING INFORMATION

SN74LVC1G125 SINGLE BUS BUFFER GATE WITH 3-STATE OUTPUT SCES223O–APRIL 1999–REVISED FEBRUARY 2007

• Available in the Texas Instruments

• I off Supports Partial-Power-Down Mode NanoStar™ and NanoFree™ Packages Operation

• Supports 5-V VCC Operation

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• Inputs Accept Voltages to 5.5 V • Max t

• ESD Protection Exceeds JESD 22 pd of 3.7 ns at 3.3 V

– 2000-V Human-Body Model (A114-A)

• Low Power Consumption, 10-µA Max I CC

– 200-V Machine Model (A115-A)

• ±24-mA Output Drive at 3.3 V

– 1000-V Charged-Device Model (C101)

This bus buffer gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G125 is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. NanoStar™ and NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using I off . The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
