SN74LS240DWR Integrated Circuit Components Program Memory LCD Controller ICs

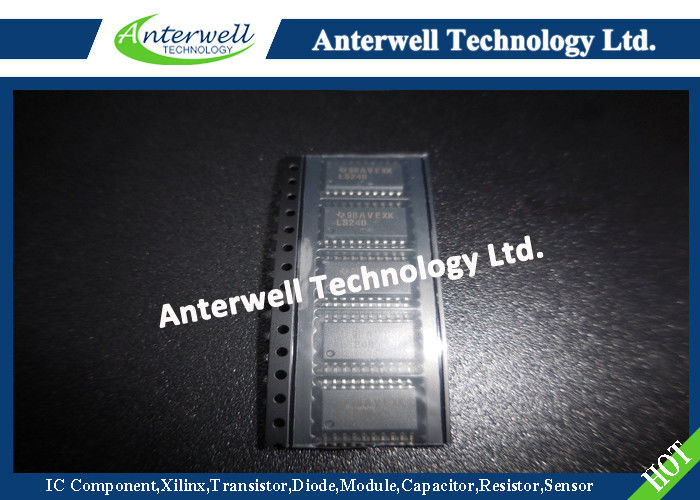

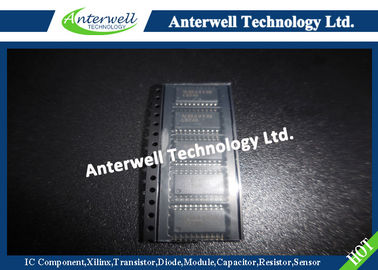

: Large Image : SN74LS240DWR Integrated Circuit Components Program Memory LCD Controller ICs

Product Details:

Place of Origin:	CHINA
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	SN74LS240DWR

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	REEL
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	3120PCS

Contact Now

Detailed Product Description

Temperature Range:	–55°C To +150°C	Payment Term:	T/T, Paypal, Western Union
Voltage:	7 V	Current:	5A
Package:	SOP-20	Factory Package:	REEL
High Light:	electronics ic chip , integrated circuit ic

SN54LS240, SN54LS241, SN54LS244, SN54S240, SN54S241, SN54S244

SN74LS240, SN74LS241, SN74LS244, SN74S240, SN74S241, SN74S244

OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS

3-State Outputs Drive Bus Lines or Buffer Memory Address Registers PNP Inputs Reduce DC Loading Hysteresis at Inputs Improves Noise Margins

Feature

Convert TTL Voltage Levels to MOS Levels

High Sink-Current Capability Input Clamping Diodes Simplify System Design

Open-Collector Driver for Indicator Lamps and Relays

description/ordering information

These octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS’ and SN74S’ devices can be used to drive terminated lines down to 133 Ω.

ABSOLUTE MAXIMUM RATINGS(1)

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . 7 V

Input voltage, VI: ’LS. . . . . . . . . . . . . . . . . . . . . . . . 7 V

L’S . . . . . . . . . . . .. . . 5.5 V

Off-state output voltage . . . . . . . . . . . . . 5.5 V

Package thermal impedance, θJA (see Note 2): DB package . . . . . . . . . . . . . 70 C/W

DW package . . . . . . . . . . . . . . . . . . . 58 °C/W

N package . . . . . . . . . . . . . . . . . . . . . . 69 °C/W

NS package . . . . . . . . . . . . . . . . . . . . . . . . .60 °C/W

Storage temperature range, Tstg . . . . . . –65°C to 150°C

PART OF STOCK

TRANS. FDS9435A	1500	FSC	15+	SOP-8
DIODO MMBD4148,215	300000	NXP	15+	SOT23-3
C.I L7805CD2T-TR	2500	ST	14+	D2PAK
FDS6990A	1500	FSC	15+	SOP-8
NDS9952A	1500	FSC	15+	SOP-8
SN65HVD485EDR	1500	TI	16+	SOP-8
SMBJ8.5CA	7500	VISHAY	16+	SMB
PIC24FJ16GA004-I/PT	1500	MICROCHIP	13+	TQFP-44
C.I TLC072CDGNR	5000	TI	05+	MSOP-8
C.I SN74LS374N	2000	TI	15+	DIP-20
TRANS. BC817-16LT1G	300000	ON	12+	SOT-23
C.I TL074CN	1000	TI	12+	DIP-14
OPTOACOPLADOR MOC3063SM	20000	FSC	14+	SOP-6
TRIAC BT151-500R	300000	NXP	16+	TO-220
C.I MM74HC164MX	25000	FSC	05+	SOP-14
C.I WS79L05	100000	WS	16+	TO-92
RES RL1206FR-070R75L	100000	YAGEO	16+	SMD1206
RES RC1206FR-071R5L	500000	YAGEO	16+	SMD1206
RES RC1206FR-071R2L	500000	YAGEO	16+	SMD1206
RES RL1206FR-070R68L	1000000	YAGEO	16+	SMD1206
RES RC0402FR-0722KL	3000000	YAGEO	16+	SMD0402
RES RC0402FR-0756RL	2000000	YAGEO	16+	SMD0402
RES RC0402FR-0724RL	2000000	YAGEO	16+	SMD0402
RES RC1206JR-072ML	500000	YAGEO	16+	SMD1206
CAP 1206 22PF 1KV NP0 CL31C220JIFNFNE	600000	SAMSUNG	16+	SMD1206
