EGL41D-E3/97 Surface Mount Glass Passivated Ultrafast Rectifier double diode model

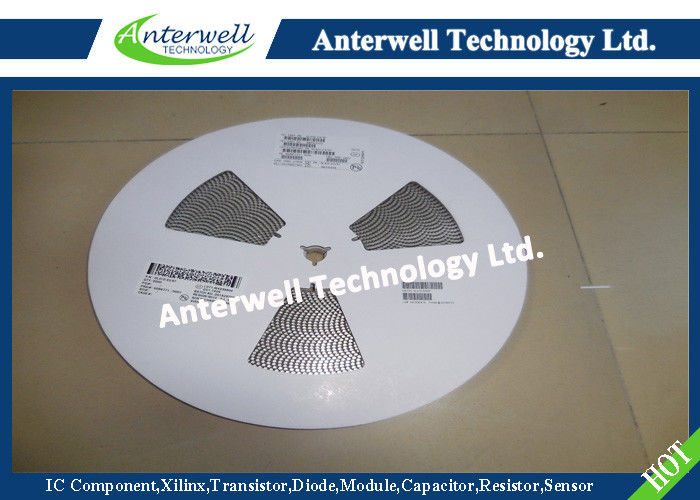

Large Image : EGL41D-E3/97 Surface Mount Glass Passivated Ultrafast Rectifier double diode model

Product Details:

Place of Origin:	Original
Brand Name:	VISHAY
Certification:	Original Factory Pack
Model Number:	EGL41D-E3/97

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

IF(AV):	1.0 A	VRRM:	50 V To 400 V
IFSM:	30 A	Trr:	50 Ns
VF:	1.0 V, 1.25 V
High Light:	power mosfet ic , silicon power transistors

EGL41D-E3/97 Surface Mount Glass Passivated Ultrafast Rectifier double diode model

EGL41D-E3/97 Surface Mount Glass Passivated Ultrafast Rectifier double diode model FEATURES

• Cavity-free glass-passivated junction

• Ideal for automated placement

• Ultrafast reverse recovery time

• Low switching losses, high efficiency

• High forward surge capability

• Meets environmental standard MIL-S-19500

• Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C • Solder dip 260 °C, 40 s

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.

MECHANICAL DATA

Case: DO-213AB, molded epoxy over glass body Epoxy meets UL 94V-0 flammability rating

Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test

Polarity: Two bands indicate cathode end - 1st band denotes device type and 2nd band denotes repetitive peak reverse voltage rating

EGL41D-E3/97 Surface Mount Glass Passivated Ultrafast Rectifier double diode model
