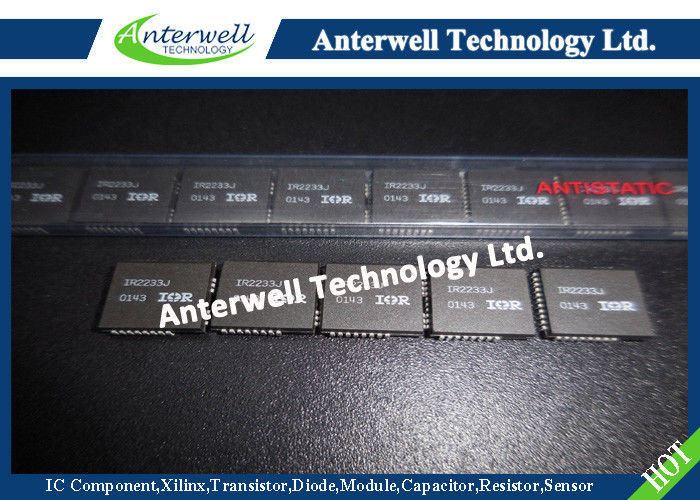

IR2233J Integrated Circuit Chip IC Driver 3 Phase Bridge Driver

IR2233J Integrated Circuit Chip IC Driver 3 Phase Bridge Driver

Features

• Floating channel designed for bootstrap operation

   Fully operational to +600V or+1200V

   Tolerant to negative transient voltage dV/dt immune

• Gate drive supply range from 10V/12V to 20V DC and up to 25V for transient

• Undervoltage lockout for all channels

• Over-current shut down turns off all six drivers

• Independent 3 half-bridge drivers

• Matched propagation delay for all channels

• 2.5V logic compatible

• Outputs out of phase with inputs

• Also available LEAD-FREE

Description

The IR2133IR2135/IR2233IR2355 (J&S) are high voltage, high speed power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.

An independent operational amplifier provides an analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs can also be derived from this resistor. A shutdown function is available to terminate all six outputs. An open drain FAULT signal is provided to indicate that an over-current or undervoltage shutdown has occurred. Fault conditions are cleared with the FLT-CLR lead.

The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600 volts or 1200 volts.

Recommended Operating Conditions

The input/output logic timing diagram is shown in figure 1. For proper operation the device should be used within the recommended conditions. All voltage parameters are absolute voltages referenced to COM. The V_S offset rating is tested with all supplies biased at 15V differential.

Note 1: Logic operational for V_S of COM - 5V to COM + 600V/1200V. Logic state held for V_S of COM -5V to COM -V_BS. (Please refer to the Design Tip DT97-3 for more details).

Note 2: All input pins, op amp input and output pins are internally clamped with a 5.2V zener diode.
