LM2662M Switched Capacitor Voltage Converter diode rectifier circuit

Good quality Programmable IC Chips for sales
Good quality Programmable IC Chips for sales
We have cooperate with Anterwell near 7 years. always very good quality good service. Original and very fast delivery. A very good partner.

—— Clemente From Brzail

I'm doing business with Anterwell from 2006, from small to big orders. Reliable!

—— Ingalill From Sweden

Sharon is a very good girl, we are very happy to cooperate with her. Competitive price and professional. Never have quality problem with them.

—— Alfredo From USA

We always buy XILINX parts from Anterwell. High quality with good price. Hope can have more business with you.

—— Mr Babak From Iran

I'm Online Chat Now

LM2662M Switched Capacitor Voltage Converter diode rectifier circuit

China LM2662M Switched Capacitor Voltage Converter diode rectifier circuit supplier

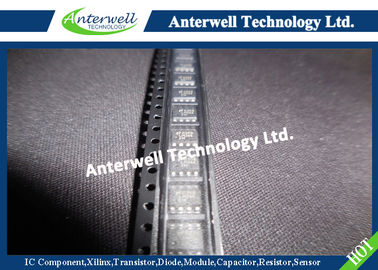

Large Image :  LM2662M Switched Capacitor Voltage Converter diode rectifier circuit

Product Details:

Place of Origin: Malaysia
Brand Name: NSC
Certification: Original Factory Pack
Model Number: LM2662M

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: TUBE
Delivery Time: 1 Day
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 3000PCS
Contact Now
Detailed Product Description
Supply Voltage: 6V LV: (OUT − 0.3V) To (GND + 3V)
FC, OSC, SD: The Least Negative Of (OUT − 0.3V) Or (V+ − 6V) To (V+ + 0.3V V+ And OUT Continuous Output Current: 250 MA
Output Short-Circuit Duration To GND (Note 2): 1 Sec Power Dissipation (TA = 25˚C) (Note 3): 735 MW
High Light:

diode rectifier circuit

,

bridge rectifier circuit

LM2662M Switched Capacitor Voltage Converter diode rectifier circuit




Features LM2662M Switched Capacitor Voltage Converter diode rectifier circuit

►Inverts or doubles input supply voltage

► Narrow SO-8 Package

► 3.5Ω typical output resistance

► 86% typical conversion efficiency at 200 mA

► (LM2662) selectable oscillator frequency: 20 kHz/150 kHz

► (LM2663) low current shutdown mode



Applications

► Laptop computers

► Cellular phones

► Medical instruments

► Operational amplifier power supplies

► Interface power supplies

► Handheld instruments



General Description

The LM2662/LM2663 CMOS charge-pump voltage converter inverts a positive voltage in the range of 1.5V to 5.5V to the corresponding negative voltage. The LM2662/LM2663 uses two low cost capacitors to provide 200 mA of output current without the cost, size, and EMI related to inductor based converters. With an operating current of only 300 µA and operating efficiency greater than 90% at most loads, the LM2662/LM2663 provides ideal performance for battery powered systems. The LM2662/LM2663 may also be used as a positive voltage doubler
