Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | –65°C To +150°C | Payment Term: | T/T, Paypal, Western Union |
|---|---|---|---|
| Voltage: | 50--300V | Current: | 3.0A |
| Package: | SMB | Factory Package: | 3000/REEL |
| High Light: | diode rectifier circuit,signal schottky diode |
||

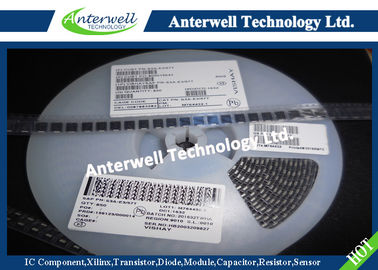

S3A - E3-57T diode rectifier circuit Program ic Chip Memory IC LCD Controller ICs
Feature
Glass Passivated Die Construction
Super-Fast Recovery
Time For High Efficiency
Low Forward Voltage
Drop and High Current Capability
Surge Overload Rating to 100A Peak
Ideally Suited for Automated Assembly
Lead Free Finish/RoHS Compliant (Note 4)
Mechanical Data
Case: SMB/SMC Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Mounting Position: Any Ordering Information: See Page 3
Marking: Type Number, See Page 3
SMB Weight: 0.093 grams (approximate)
SMC Weight: 0.21 grams (approximate)
| ABSOLUTE MAXIMUM RATINGS(1) |
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR 50 100 150 200 V RMS Reverse Voltage VR(RMS) 35 70 105 140 V Average Rectified Output Current @ TT = 100C IO 3.0 A Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave Superimposed on Rated Load (JEDEC Method) IFSM 100 A Forward Voltage @ IF = 3.0A VFM 0.9 V Peak Reverse Current @ TA = 25C at Rated DC Blocking Voltage @ TA = 125C IRM 10 500 A Reverse Recovery Time (Note 3) trr 25 ns Typical Total Capacitance (Note 2) CT 45 pF Typical Thermal Resistance, Junction to Terminal (Note 1) RJT 15 C/W Operating and Storage Temperature Range Tj, TSTG -65 to +150 C |
