FDS6990A Power Mosfet Transistor Dual N Channel Logic PowerTrench MOSFET

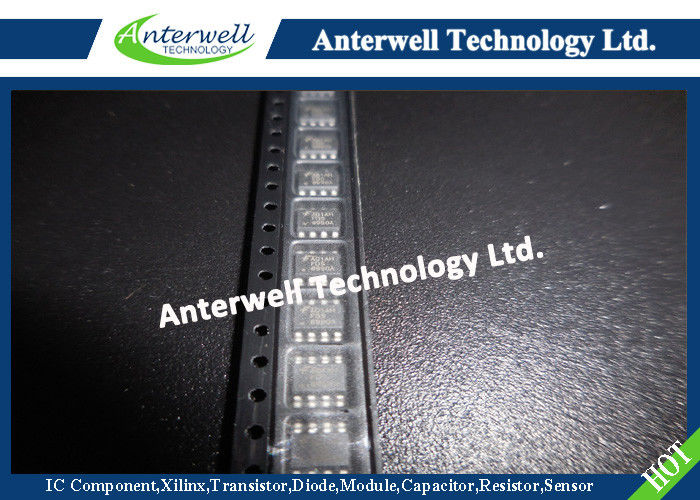

: Large Image : FDS6990A Power Mosfet Transistor Dual N Channel Logic PowerTrench MOSFET

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	FDS6990A

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7000pcs

Contact Now

Detailed Product Description

Drain-Source Voltage:	30 V	Gate-Source Voltage:	± 20 V
Operating Junction Temperature:	–55 To +150 °C	Storage Temperature:	–55 To +150 °C
Thermal Resistance, Junction-to-Ambient:	78 °C/W	Thermal Resistance, Junction-to-Case:	40 °C/W
High Light:	power mosfet ic , multi emitter transistor

FDS6990A Power Mosfet Transistor Dual N Channel Logic PowerTrench MOSFET

General Description

These N-Channel Logic Level MOSFETs are produced using Fairchild Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

Features

· 7.5 A, 30 V. R_DS(ON) = 18 mW @ V_GS = 10 V

R_DS(ON) = 23 mW @ V_GS = 4.5 V

· Fast switching speed

· Low gate charge

· High performance trench technology for extremely low R_DS(ON)

· High power and current handling capability

Absolute Maximum Ratings T_A=25℃ unless otherwise noted

Symbol	Parameter	Ratings	Units
V_DSS	Drain-Source Voltage	30	V
V_GSS	Gate-Source Voltage	± 20	V
I_D	Drain Current – Continuous (Note 1a) – Pulsed	7.5	A
I_D	Drain Current – Continuous (Note 1a) – Pulsed	20	A
P_D	Power Dissipation for Single Operation (Note 1a) (Note 1b) (Note 1c)	1.6	W
		1.0
		0.9
T_J, T_STG	Operating and Storage Junction Temperature Range	–55 to +150	℃
